ISDA: 9UYL

Deposition Date 2025-05-15

Release Date 2025-11-19

Last Version Date 2025-11-19

Entry Detail

PDB ID:

9UYL

Keywords:

MEMBRANE PROTEIN/IMMUNE SYSTEM

Title:

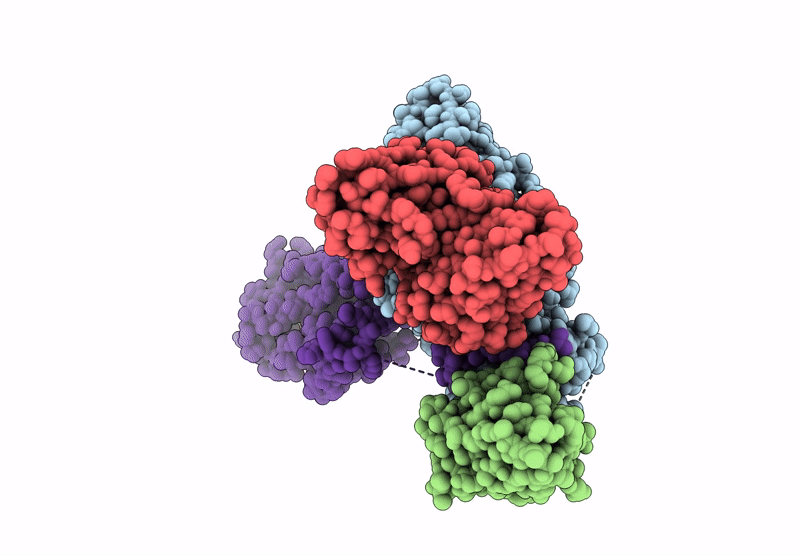

Cryo-EM structure of the G protein-coupled receptor 1 (GPR1) bound to chemerin and beta-arrestin 1 (Conformation 4)

Biological Source:

Source Organism:

Homo sapiens (Taxon ID: 9606)
Escherichia phage EcSzw-2 (Taxon ID: 2419741)

Host Organism:

Spodoptera frugiperda

Method Details:

Experimental Method:

ELECTRON MICROSCOPY

Resolution:

3.30 Å

Aggregation State:

PARTICLE

Reconstruction Method:

SINGLE PARTICLE

Download Validation Report

Macromolecular Entities

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Beta-arrestin-1
Gene (Uniprot):ARRB1
Mutagens:C59A, C125S, C140I, C150V, R169E, C242V, C251V and C269S
Chain IDs:C (auth: A)
Chain Length:376
Number of Molecules:1
Biological Source:Homo sapiens

UniProt ID:P49407 Pfam ID:PF00339, PF02752

Polymer Type:polypeptide(L)
Molecule:Nanobody 32
Chain IDs:D (auth: B)
Chain Length:120
Number of Molecules:1
Biological Source:Escherichia phage EcSzw-2

Polymer Type:polypeptide(L)
Molecule:Single-chain fragment variable 30 (scFv30)
Chain IDs:E (auth: C)
Chain Length:245
Number of Molecules:1
Biological Source:Homo sapiens

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Retinoic acid receptor responder protein 2
Gene (Uniprot):RARRES2
Chain IDs:B (auth: L)
Chain Length:153
Number of Molecules:1
Biological Source:Homo sapiens

UniProt ID:Q99969

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Chemerin-like receptor 2,Vasopressin V2 receptor
Gene (Uniprot):AVPR2, CMKLR2
Chain IDs:A (auth: R)
Chain Length:396
Number of Molecules:1
Biological Source:Homo sapiens

UniProt ID:P46091,P30518 Pfam ID:PF00001

Modified Residue
