9QHC image
Deposition Date 2025-03-14
Release Date 2025-10-22
Last Version Date 2025-10-22
Entry Detail
PDB ID:
9QHC
Keywords:
Title:

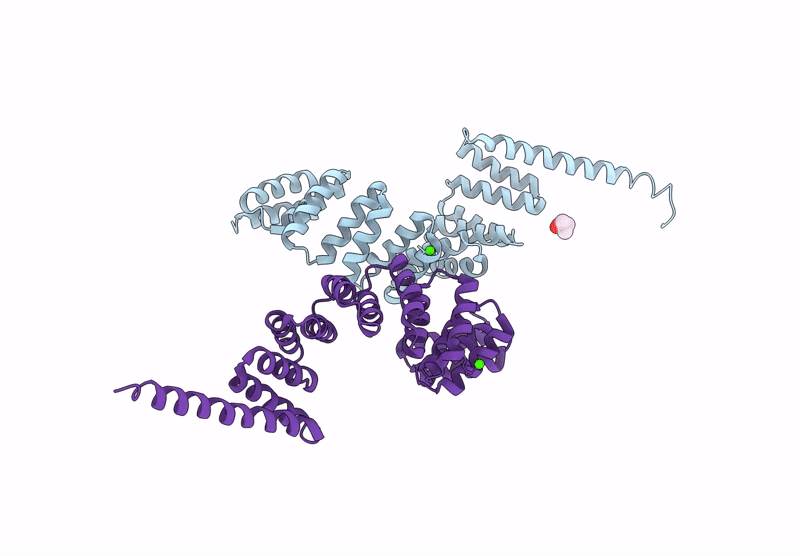

Crystal structure of 8-repeat CTPR protein with eliminated coordination sites
Biological Source:
Source Organism:
Escherichia coli (Taxon ID: 562)
Host Organism:
Method Details:
Experimental Method:
Resolution:
2.88 Å
R-Value Free:
0.33
R-Value Work:
0.20
R-Value Observed:
0.21
Space Group:
P 21 21 2
Macromolecular Entities
Polymer Type:polypeptide(L)
Molecule:Engineered tetratricopeptide repeat protein
Chain IDs:A, B
Chain Length:292
Number of Molecules:2
Biological Source:Escherichia coli
Primary Citation
Rational Crystal Contact Engineering for Programmable Self-Assembled Protein Architectures.
Angew.Chem.Int.Ed.Engl. ? e202516635 e202516635 (2025)
PMID: 41077847 DOI: 10.1002/anie.202516635

Abstact

Ordered protein-based assemblies are increasingly desirable for materials science, but the design of new materials remains challenging and requires considerable effort. Crystal lattice contact modulation enables rapid rational design of an assortment of structurally diverse constructs with crystalline order. Targeted disruption of crystal contacts and directional growth pre-biasing allows for restricting crystal lattice growth in selected directions, resulting in lower-dimension assemblies with parent crystal structural features. Two-dimensional crystals, one-dimensional fibres, flexible ribbons, and single-walled nanotubes based on tetratricopeptide repeat proteins were constructed from reengineered 3D crystal lattices. The large library of available crystal structures provides an abundance of engineering targets, promising to make crystal contact engineering a rapid and attractive approach for the design of ordered supramolecular protein assemblies.
