ISDA: 9QB9

Deposition Date 2025-03-01

Release Date 2026-01-21

Last Version Date 2026-01-21

Entry Detail

PDB ID:

9QB9

Keywords:

TRANSFERASE

Title:

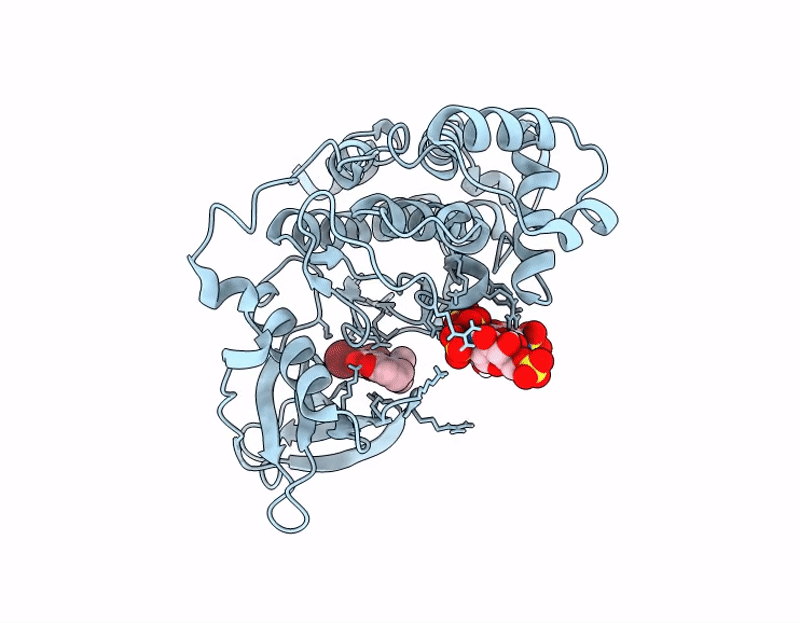

CK2, catalytic subunit alpha' (CSNK2A2 gene product) in complex with a heparin-derived trisaccharide and the ATP-competitive inhibitor 4w

Biological Source:

Source Organism(s):

Homo sapiens (Taxon ID: 9606)

Expression System(s):

Escherichia coli

Method Details:

Experimental Method:

X-RAY DIFFRACTION

Resolution:

1.19 Å

R-Value Free:

0.17

R-Value Work:

0.14

R-Value Observed:

0.14

Space Group:

P 1

Download Validation Report

Macromolecular Entities

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Casein kinase II subunit alpha'
Gene (Uniprot):CSNK2A2
Mutagens:C336S
Chain IDs:A
Chain Length:370
Number of Molecules:1
Biological Source:Homo sapiens

UniProt ID:P19784 Pfam ID:PF00069 EC:2.7.11.1

Ligand Molecules

A1I5N

Primary Citation

Crystallographic Fragment Screening with CK2 alpha’, an Isoform of Human Protein Kinase CK2 Catalytic Subunit, and Its Use to Obtain a CK2 alpha’/Heparin Complex Structure

Werner, C, Barthel, T, Harasimowicz, H, Marminon, C, Weiss, M.S, Borgne, M.L, Niefind, K.Show

Kinases Phosphatases 4 1 ? (2026)

DOI: 10.3390/kinasesphosphatases4010001
