9QA5 image
Deposition Date 2025-02-27
Release Date 2025-12-31
Last Version Date 2025-12-31
Entry Detail
PDB ID:
9QA5
Keywords:
SIGNALING PROTEIN
Title:

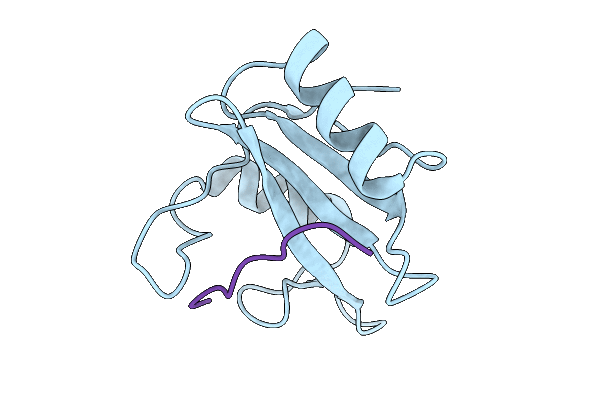

Structure of the N-SH2 domain of SHP2 in complex with the phosphoY627-Gab1 (613-651) peptide
Biological Source:
Source Organism:
Homo sapiens (Taxon ID: 9606)
Host Organism:
Escherichia coli BL21(DE3)
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
2.08 Å
R-Value Free:
0.27
R-Value Work:
0.22
R-Value Observed:
0.22
Space Group:
P 43 21 2
9QA5 validation report
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Isoform 3 of Tyrosine-protein phosphatase non-receptor type 11
Gene (Uniprot):PTPN11
Chain IDs:A
Chain Length:106
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:Q06124 Pfam ID:PF00017 EC:3.1.3.48
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:GRB2-associated-binding protein 1
Gene (Uniprot):GAB1
Chain IDs:B
Chain Length:39
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:Q13480
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
PTR B TYR modified residue
Primary Citation
Mechanism of SHP2 activation by bis-Tyr-phosphorylated Gab1
Structure ? ? ? (2025)
DOI: 10.1016/j.str.2025.11.018
Primary Citation of related structures
9QA5
