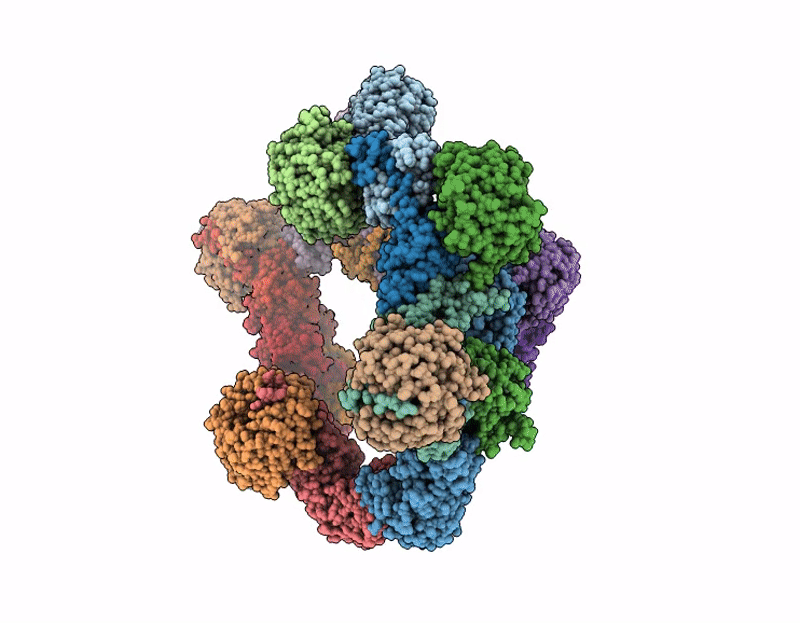

9OTI image
Deposition Date 2025-05-27
Release Date 2025-10-01
Last Version Date 2025-10-29
Entry Detail
PDB ID:
9OTI
Title:
GATOR2 complex bound to arginine sensor CASTOR1
Biological Source:
Source Organism:
Homo sapiens (Taxon ID: 9606)
Host Organism:
Method Details:
Experimental Method:
Resolution:
3.50 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:GATOR2 complex protein MIOS
Gene (Uniprot):MIOS
Chain IDs:A, B, I (auth: L), P (auth: T)
Chain Length:875
Number of Molecules:4
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:GATOR complex protein WDR24
Gene (Uniprot):WDR24
Chain IDs:C, J (auth: M)
Chain Length:790
Number of Molecules:2
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:GATOR complex protein WDR59
Gene (Uniprot):WDR59
Chain IDs:D, K (auth: N)
Chain Length:974
Number of Molecules:2
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Nucleoporin SEH1
Gene (Uniprot):SEH1L
Chain IDs:E, F, G, L (auth: O), M (auth: P), N (auth: Q)
Chain Length:360
Number of Molecules:6
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Protein SEC13 homolog
Gene (Uniprot):SEC13
Chain IDs:H, O (auth: R)
Chain Length:322
Number of Molecules:2
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Cytosolic arginine sensor for mTORC1 subunit 1
Gene (Uniprot):CASTOR1
Mutagens:D304A, S111A
Chain IDs:Q (auth: U), R (auth: V)
Chain Length:329
Number of Molecules:2
Biological Source:Homo sapiens
Ligand Molecules
Primary Citation
Structural basis for mTORC1 regulation by the CASTOR1-GATOR2 complex.
Nat.Struct.Mol.Biol. 32 1980 1988 (2025)
PMID: 40715445 DOI: 10.1038/s41594-025-01635-0

Abstact

Mechanistic target of rapamycin complex 1 (mTORC1) is a nutrient-responsive master regulator of metabolism. Amino acids control the recruitment and activation of mTORC1 at the lysosome through the nucleotide loading state of the heterodimeric Rag GTPases. Under low nutrients, including arginine, the GTPase-activating protein complex GATOR1 promotes GTP hydrolysis on RagA/B, inactivating mTORC1. GATOR1 is regulated by the cage-like GATOR2 complex and cytosolic amino acid sensors. To understand how the arginine sensor CASTOR1 binds to GATOR2 to disinhibit GATOR1 under low cytosolic arginine, we determined the cryo-electron microscopy structure of human GATOR2 bound to CASTOR1 in the absence of arginine. Two MIOS WD40 domain β-propellers of the GATOR2 cage engage with both subunits of a single CASTOR1 homodimer. Each propeller binds to a negatively charged MIOS-binding interface on CASTOR1 that is distal to the arginine pocket. The structure shows how arginine-triggered loop ordering in CASTOR1 blocks the MIOS-binding interface, switches off its binding to GATOR2 and, thus, communicates to downstream mTORC1 activation.
