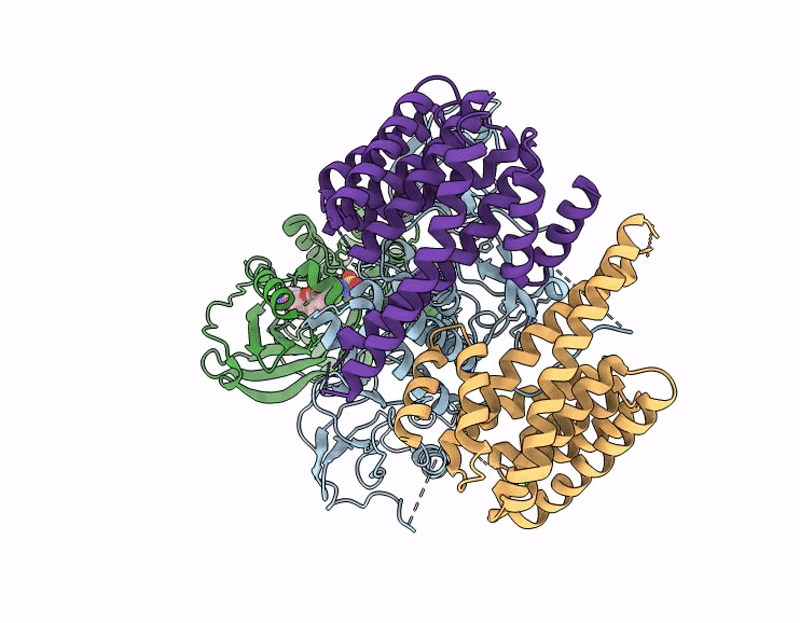

9O2Z image
Deposition Date 2025-04-04
Release Date 2025-09-10
Last Version Date 2025-09-10
Entry Detail
PDB ID:
9O2Z
Keywords:
SIGNALING PROTEIN
Title:
Autoinhibited BRAF:(14-3-3)2:MEK complex from Insect cells
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Trichoplusia ni
Method Details:
Experimental Method:
ELECTRON MICROSCOPY
Resolution:
3.83 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
9O2Z validation report
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Serine/threonine-protein kinase B-raf
Gene (Uniprot):BRAF
Chain IDs:A
Chain Length:766
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:P15056 Pfam ID:PF02196, PF00130, PF07714 EC:2.7.10.2
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Dual specificity mitogen-activated protein kinase kinase 1
Gene (Uniprot):MAP2K1
Chain IDs:B
Chain Length:393
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:Q02750 Pfam ID:PF00069 EC:2.7.12.2
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:14-3-3 protein zeta/delta
Gene (Uniprot):YWHAZ
Chain IDs:C, D
Chain Length:245
Number of Molecules:2
Biological Source:Homo sapiens
UniProt ID:P63104 Pfam ID:PF00244
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
SEP A SER modified residue
Ligand Molecules
CHU
ZN
Primary Citation
Autoinhibited BRAF:(14-3-3)2:MEK complex from Insect cells
To Be Published ? ? ? (?)
Primary Citation of related structures
9O2Z
