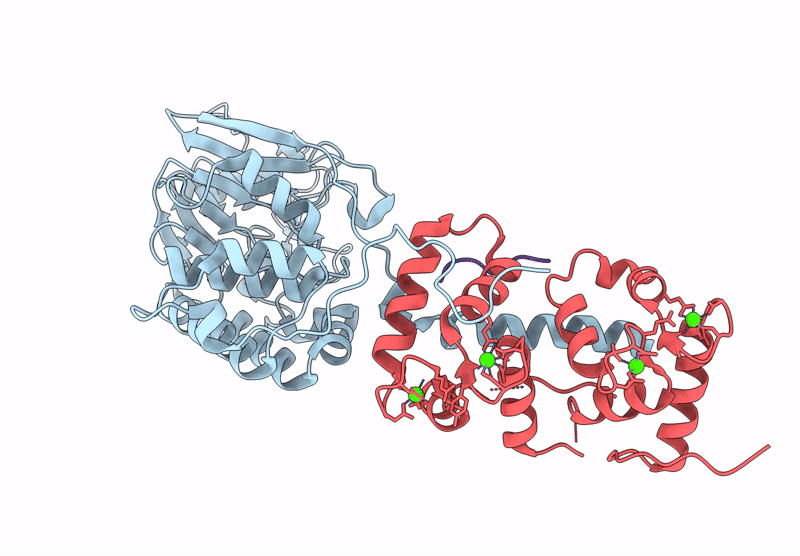

9NXN image
Deposition Date 2025-03-25
Release Date 2025-12-17
Last Version Date 2025-12-17
Entry Detail
PDB ID:
9NXN
Keywords:
HYDROLASE
Title:
Crystal structure of CN:RII alpha
Biological Source:
Source Organism:
Homo sapiens (Taxon ID: 9606)
Host Organism:
Escherichia coli
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
2.10 Å
R-Value Free:
0.25
R-Value Work:
0.20
R-Value Observed:
0.21
Space Group:
P 21 21 21
9NXN validation report
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Serine/threonine-protein phosphatase 2B catalytic subunit alpha isoform
Gene (Uniprot):PPP3CA
Chain IDs:A
Chain Length:370
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:Q08209 Pfam ID:PF00149 EC:3.1.3.16
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Calcineurin subunit B type 1
Gene (Uniprot):PPP3R1
Chain IDs:B
Chain Length:170
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:P63098 Pfam ID:PF13499
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:cAMP-dependent protein kinase type II-alpha regulatory subunit
Gene (Uniprot):PRKAR2A
Chain IDs:C
Chain Length:64
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:P13861
Ligand Molecules
CA
Primary Citation
CN:Tak1 complex explains CN substrate specificity
To Be Published ? ? ? (?)
Primary Citation of related structures
9NXN
