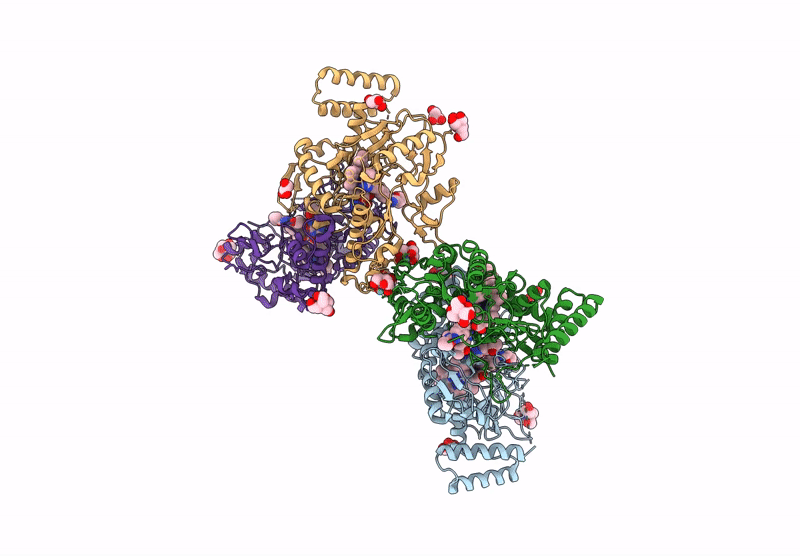

9MWO image
Deposition Date 2025-01-17
Release Date 2025-11-26
Last Version Date 2025-11-26
Entry Detail
PDB ID:
9MWO
Keywords:
OXIDOREDUCTASE
Title:
Structure of human endothelial nitric oxide synthase heme domain bound with N-(4-(2-((3-(thiophene-2-carboximidamido)benzyl)amino)ethyl)phenyl)thiophene-2-carboximidamide
Biological Source:
Source Organism:
Homo sapiens (Taxon ID: 9606)
Host Organism:
Escherichia coli BL21(DE3)
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
1.76 Å
R-Value Free:
0.23
R-Value Work:
0.20
R-Value Observed:
0.20
Space Group:
P 1 21 1
9MWO validation report
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Nitric oxide synthase, endothelial
Gene (Uniprot):NOS3
Chain IDs:A, B, C, D
Chain Length:440
Number of Molecules:4
Biological Source:Homo sapiens
UniProt ID:P29474 Pfam ID:PF02898 EC:1.14.13.39
Ligand Molecules
A1BTY
BTB
CL
GD
GOL
H4B
HEM
ZN
Primary Citation
A step forward for neuronal Nitric Oxide Synthase Inhibitors against Melanoma
To be published ? ? ? (?)
Primary Citation of related structures
9MWO
