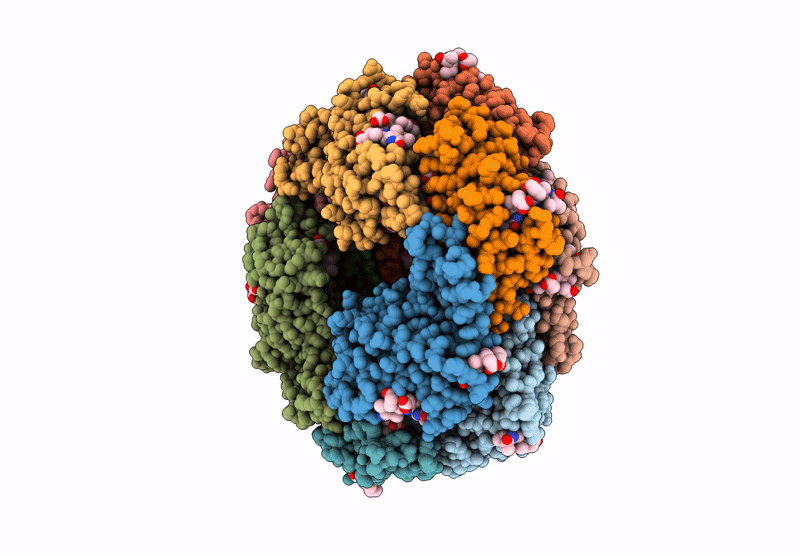

9MKO image
Deposition Date 2024-12-17
Release Date 2025-08-06
Last Version Date 2025-10-15
Entry Detail
PDB ID:
9MKO
Keywords:
Title:
4D4 TCR bound to R-phycoerythrin
Biological Source:
Source Organism:
Host Organism:
Method Details:
Experimental Method:
Resolution:
3.21 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:R-phycoerythrin class I alpha subunit
Gene (Uniprot):cpeA
Chain IDs:A, C, E (auth: F), G (auth: I), I (auth: L), K (auth: O)
Chain Length:164
Number of Molecules:6
Biological Source:Ceramium secundatum
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:R-phycoerythrin class I beta subunit
Gene (Uniprot):cpeB
Chain IDs:B, D, F (auth: G), H (auth: J), J (auth: M), L (auth: Q)
Chain Length:237
Number of Molecules:6
Biological Source:Ceramium secundatum
Polymer Type:polypeptide(L)
Molecule:4D4 TCR alpha chain
Chain IDs:M (auth: a)
Chain Length:164
Number of Molecules:1
Biological Source:Mus musculus
Polymer Type:polypeptide(L)
Molecule:4D4 TCR beta chain
Chain IDs:N (auth: b)
Chain Length:237
Number of Molecules:1
Biological Source:Mus musculus
Primary Citation
Antibody-like recognition of a gamma delta T cell receptor toward a foreign antigen.
Structure 33 1649 ? (2025)
PMID: 40744007 DOI: 10.1016/j.str.2025.07.006

Abstact

The antigen recognition principles of B cells and αβ T cells have been well described compared to those of the γδ T cell. By way of their specificity conferring receptor (γδTCR), γδ T cells can directly bind proteinaceous antigens. A known γδ T cell and B cell model antigen is phycoerythrin (PE), a light harvesting protein from rhodophytes and cyanobacteria. Here we probed human γδTCR reactivity to PE, in which a Vδ1Vγ5 TCR bound directly to induce proximal signaling and cellular activation. We determined the cryoelectron microscopy (cryo-EM) structure of the γδTCR-phycoerythrin immune complex. We then determined the cryo-EM structures of an antibody fragment and an αβTCR bound to PE. This revealed convergent use of apical aromatic residues to mediate contacts with a common PE epitope. Comparative analyses of the γδTCR revealed multiple antibody-like characteristics, including an enrichment of apical aromatic residues. Our findings reveal further distinct facets of antigen recognition by the γδTCR.
