9LKU image
Deposition Date 2025-01-16
Release Date 2025-08-20
Last Version Date 2025-08-20
Entry Detail
PDB ID:
9LKU
Keywords:
Title:

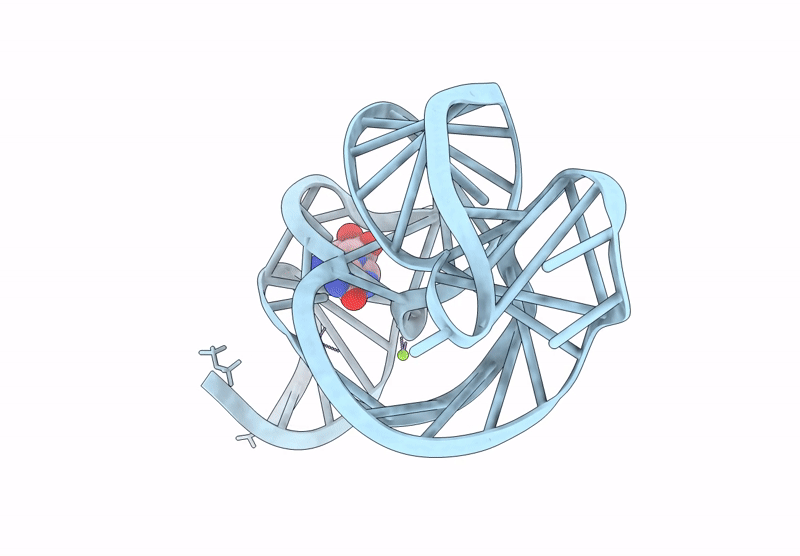

Crystal structure of the 2'-dG-III riboswitch bound to Guanosine
Biological Source:
Source Organism:
Method Details:
Experimental Method:
Resolution:
2.74 Å
R-Value Free:
0.26
R-Value Work:
0.20
R-Value Observed:
0.20
Space Group:
I 2 2 2
Macromolecular Entities
Polymer Type:polyribonucleotide
Molecule:RNA (65-MER)
Chain IDs:A (auth: X)
Chain Length:65
Number of Molecules:1
Biological Source:synthetic construct
Primary Citation
Structure-based insights into the ligand specificity tuning of 2'-dG-III riboswitch.
Nucleic Acids Res. 53 ? ? (2025)
PMID: 40795954 DOI: 10.1093/nar/gkaf773

Abstact

Riboswitches are conserved non-coding RNA domains predominantly located at the 5'-end of the bacterial mRNAs, serving as gene expression regulators. Recently, a third class of 2'-deoxyguanosine riboswitch (2'-dG-III) has been identified from guanine riboswitch family, exhibiting comparable binding affinity toward 2'-dG, guanine, and guanosine. To elucidate the unique ligand recognition mechanism of this riboswitch, we solved its crystal structures in complex with different purine derivatives, including 2'-dG, guanine, and guanosine. The tertiary structure reveals a typical tuning-fork-like architecture, with three stems converging at a central three-way junction. The bound ligand, 2'-dG, is anchored within the junctional core through specific molecular interactions involving certain critical nucleotides. Through systemic comparative analysis of the binding pocket across different ligand-bound states, as well as related guanine family riboswitches, including 2'-dG-I, 2'-dG-II, and Guanine-I riboswitches, we identified subtle yet significant structural variations that modulate binding affinity and specificity. Leveraging these findings, we further engineered RNA biosensors by fusing the 2'-dG-III riboswitch with Pepper fluorogenic RNA aptamer, which exhibits a robust, positive correlation between fluorescence intensity and 2'-dG levels in vitro. Together, this work not only advances our understanding of the ligand recognition mechanisms underlying the 2'-dG-III riboswitch and related guanine riboswitch family but also lays the groundwork for fine-tuning riboswitch specificity, paving the way for the development of highly specific RNA-based biosensors.
