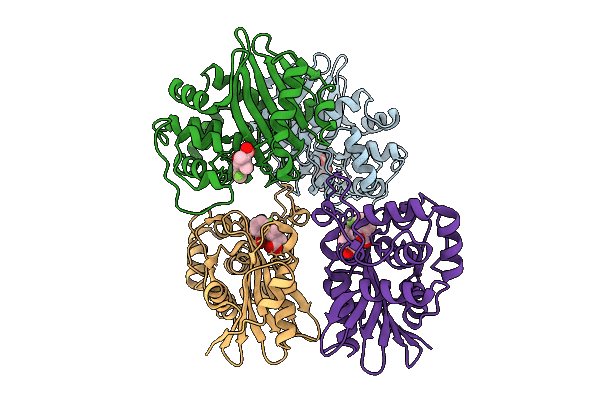

9L7A image
Deposition Date 2024-12-26
Release Date 2025-12-31
Last Version Date 2025-12-31
Entry Detail
PDB ID:
9L7A
Keywords:
HYDROLASE
Title:
Serine Beta-Lactamase OXA-48 in complex with Dual MBL/SBL inhibitor B32
Biological Source:
Source Organism:
Klebsiella pneumoniae (Taxon ID: 573)
Host Organism:
Escherichia coli BL21(DE3)
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
1.50 Å
R-Value Free:
0.22
R-Value Work:
0.20
R-Value Observed:
0.23
Space Group:
P 1 21 1
9L7A validation report
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Beta-lactamase
Gene (Uniprot):bla
Chain IDs:A, B, C, D
Chain Length:242
Number of Molecules:4
Biological Source:Klebsiella pneumoniae
UniProt ID:A0A866WQ05 Pfam ID:PF00905
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
KCX A LYS modified residue
Ligand Molecules
A1EKC
Primary Citation
A class of novel, potent,dual-acting benzoquinte-borate Beta-lactamase inhibitors targeting SBL/MBL
To Be Published ? ? ? (?)
Primary Citation of related structures
9L7A
