9L3L image
Deposition Date 2024-12-18
Release Date 2025-12-24
Last Version Date 2025-12-24
Entry Detail
PDB ID:
9L3L
Keywords:
LIGASE
Title:

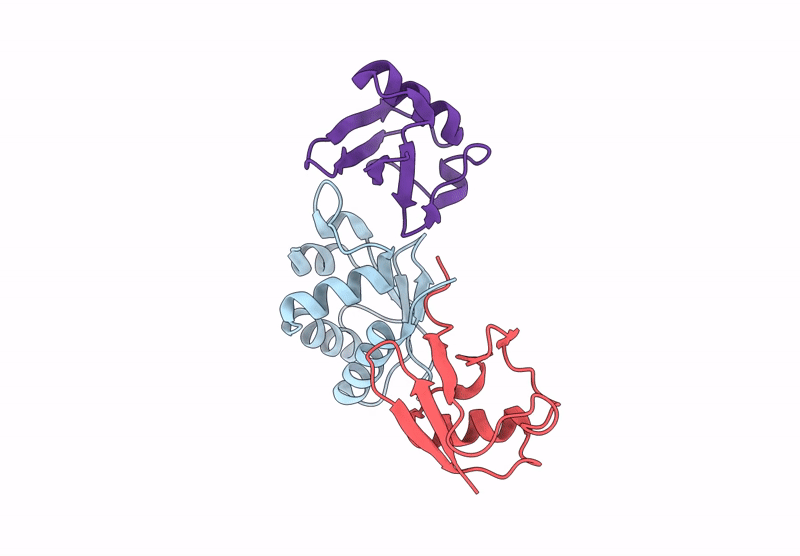

Crystal structure of the C lobe of E6AP in complex with K48-linked diUb
Biological Source:
Source Organism:
Homo sapiens (Taxon ID: 9606)
Host Organism:
Escherichia coli
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
2.59 Å
R-Value Free:
0.26
R-Value Work:
0.21
R-Value Observed:
0.22
Space Group:
C 2 2 21
9L3L validation report
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Ubiquitin-protein ligase E3A
Gene (Uniprot):UBE3A
Chain IDs:A
Chain Length:108
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:Q05086 Pfam ID:PF00632 EC:2.3.2.26
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Donor Ubiquitin
Gene (Uniprot):RPS27A
Chain IDs:B
Chain Length:76
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:P62979 Pfam ID:PF00240
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Acceptor Ubiquitin
Gene (Uniprot):RPS27A
Chain IDs:C
Chain Length:73
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:P62979 Pfam ID:PF00240
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
SLZ C LYS modified residue
Primary Citation
Structural Insights into the Role of the C-Lobe of E6AP in Catalyzing K48-Linked Ubiquitin Chain Formation
To Be Published ? ? ? (?)
