9JR0 image
Deposition Date 2024-09-28
Release Date 2025-10-22
Last Version Date 2025-10-22
Entry Detail
PDB ID:
9JR0
Keywords:
MEMBRANE PROTEIN
Title:

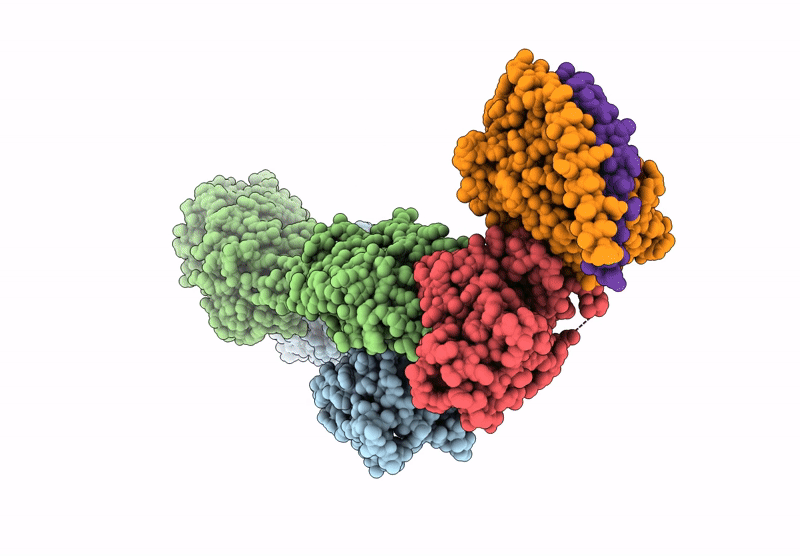

GABA-DGABAB-Gi-complex
Biological Source:
Source Organism:
Drosophila melanogaster (Taxon ID: 7227)
Homo sapiens (Taxon ID: 9606)
Host Organism:
Homo sapiens
Method Details:
Experimental Method:
ELECTRON MICROSCOPY
Resolution:
3.06 Å
Aggregation State:
3D ARRAY
Reconstruction Method:
SINGLE PARTICLE
9JR0 validation report
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Metabotropic GABA-B receptor subtype 1
Gene (Uniprot):GABA-B-R1
Chain IDs:A
Chain Length:780
Number of Molecules:1
Biological Source:Drosophila melanogaster
UniProt ID:Q9BML7 Pfam ID:PF01094, PF00003
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Gamma-aminobutyric acid type B receptor subunit 2
Gene (Uniprot):GABA-B-R2
Chain IDs:B
Chain Length:767
Number of Molecules:1
Biological Source:Drosophila melanogaster
UniProt ID:Q9BML6 Pfam ID:PF01094, PF00003
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Guanine nucleotide-binding protein G(i) subunit alpha-1
Gene (Uniprot):GNAI1
Chain IDs:C
Chain Length:354
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:P63096 Pfam ID:PF00503
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Gene (Uniprot):GNB1
Chain IDs:D
Chain Length:358
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:P62873 Pfam ID:PF00400
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Gene (Uniprot):GNG2
Chain IDs:E
Chain Length:71
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:P59768 Pfam ID:PF00631
Ligand Molecules
ABU
Primary Citation
Structural basis of GABAB receptor activation during evolution
To Be Published ? ? ? (?)
Primary Citation of related structures
9JR0
