9HUX image
Deposition Date 2024-12-23
Release Date 2026-01-14
Last Version Date 2026-01-14
Entry Detail
PDB ID:
9HUX
Keywords:
OXIDOREDUCTASE
Title:

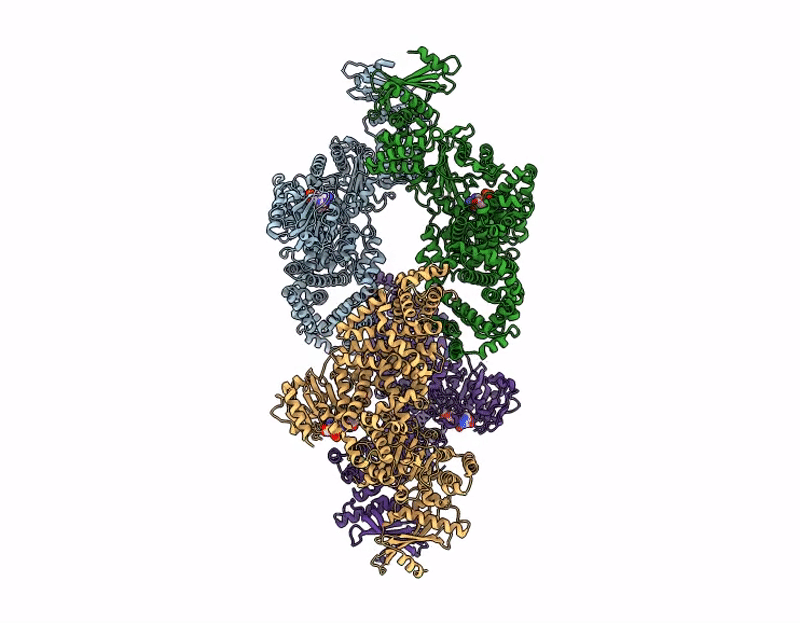

CryoEM map of the large glutamate dehydrogenase composed of 180 kDa subunits from Mycobacterium smegmatis obtained in the presence of NAD+ and L-glutamate. Open Tetramer.
Biological Source:
Source Organism(s):
Mycolicibacterium smegmatis (Taxon ID: 1772)
Expression System(s):
Escherichia coli bl21(de3)
Method Details:
Experimental Method:
ELECTRON MICROSCOPY
Resolution:
3.88 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
9HUX validation report
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:NAD-specific glutamate dehydrogenase
Gene (Uniprot):gdh
Chain IDs:A, B, C, D
Chain Length:1611
Number of Molecules:4
Biological Source:Mycolicibacterium smegmatis
UniProt ID:A0R1C2 Pfam ID:PF21075, PF21073, PF21076, PF21079, PF21077, PF21078, PF05088, PF21074 EC:1.4.1.2
Ligand Molecules
NAD
Primary Citation
Tertiary and quaternary structure remodeling by occupancy of the substrate binding pocket in a large glutamate dehydrogenase
To Be Published ? ? ? (?)
Primary Citation of related structures
9HUX
