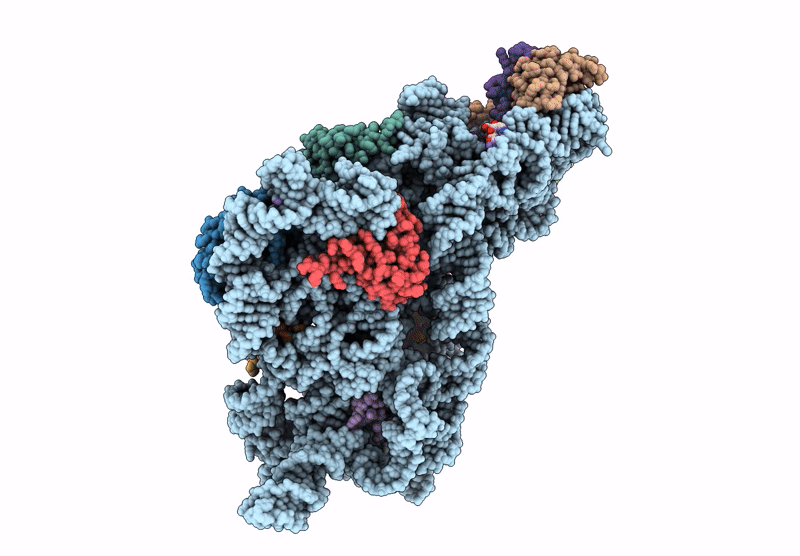

9H9L image
Deposition Date 2024-10-31
Release Date 2025-08-06
Last Version Date 2025-08-06
Entry Detail
PDB ID:
9H9L
Keywords:
Title:
Complex 3 (BODY) 30S-tRNA-GE81112
Biological Source:
Source Organism:
Escherichia coli (Taxon ID: 562)
Host Organism:
Method Details:
Experimental Method:
Resolution:
3.20 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
Macromolecular Entities
Polymer Type:polyribonucleotide
Molecule:16S RNA (1078-MER)
Chain IDs:A
Chain Length:1541
Number of Molecules:1
Biological Source:Escherichia coli
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small ribosomal subunit protein uS4
Gene (Uniprot):rpsD
Chain IDs:B (auth: D)
Chain Length:206
Number of Molecules:1
Biological Source:Escherichia coli
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small ribosomal subunit protein uS5
Gene (Uniprot):rpsE
Chain IDs:C (auth: E)
Chain Length:167
Number of Molecules:1
Biological Source:Escherichia coli
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small ribosomal subunit protein bS6, fully modified isoform
Gene (Uniprot):rpsF
Chain IDs:D (auth: F)
Chain Length:135
Number of Molecules:1
Biological Source:Escherichia coli
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small ribosomal subunit protein uS8
Gene (Uniprot):rpsH
Chain IDs:E (auth: H)
Chain Length:130
Number of Molecules:1
Biological Source:Escherichia coli
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small ribosomal subunit protein uS11
Gene (Uniprot):rpsK
Chain IDs:F (auth: K)
Chain Length:129
Number of Molecules:1
Biological Source:Escherichia coli
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small ribosomal subunit protein uS12
Gene (Uniprot):rpsL
Chain IDs:G (auth: L)
Chain Length:124
Number of Molecules:1
Biological Source:Escherichia coli
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small ribosomal subunit protein uS15
Gene (Uniprot):rpsO
Chain IDs:H (auth: O)
Chain Length:89
Number of Molecules:1
Biological Source:Escherichia coli
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small ribosomal subunit protein bS16
Gene (Uniprot):rpsP
Chain IDs:I (auth: P)
Chain Length:82
Number of Molecules:1
Biological Source:Escherichia coli
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small ribosomal subunit protein uS17
Gene (Uniprot):rpsQ
Chain IDs:J (auth: Q)
Chain Length:84
Number of Molecules:1
Biological Source:Escherichia coli
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small ribosomal subunit protein bS18
Gene (Uniprot):rpsR
Chain IDs:K (auth: R)
Chain Length:75
Number of Molecules:1
Biological Source:Escherichia coli
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small ribosomal subunit protein bS20
Gene (Uniprot):rpsT
Chain IDs:L (auth: T)
Chain Length:87
Number of Molecules:1
Biological Source:Escherichia coli
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small ribosomal subunit protein bS21
Gene (Uniprot):rpsU
Chain IDs:M (auth: U)
Chain Length:71
Number of Molecules:1
Biological Source:Escherichia coli
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
2MG A G modified residue
4OC A C modified residue
5MC A C modified residue
G7M A G modified residue
MA6 A A modified residue
PSU A U modified residue
UR3 A U modified residue
Primary Citation

Abstact

The initiation phase is the rate-limiting step of protein synthesis (translation) and is finely regulated, making it an important drug target. In bacteria, initiation is guided by three initiation factors and involves positioning the start site on the messenger RNA within the P-site on the small ribosomal subunit (30S), where it is decoded by the initiator tRNA. This process can be efficiently inhibited by GE81112, a natural hydrophilic, noncyclic, nonribosomal tetrapeptide. It is found in nature in three structural variants (A, B and B1 with molecular masses of 643-658 Da). Previous biochemical and structural characterisation of GE81112 indicates that the primary mechanism of action of this antibiotic is to (1) prevent the initiator tRNA from binding correctly to the P-site and (2) block conformational rearrangements in initiation factor IF3, resulting in an unlocked 30S pre/C state. In this study, using cryoEM, we have determined the binding site of GE81112 in initiation complexes (3.2-3.7Å) and on empty ribosomes (2.09 Å). This binding site is within the mRNA channel (E-site) but remote from the binding site of the initiation factors and initiator tRNA. This suggests that it acts allosterically to prevent the initiator tRNA from being locked into place. The binding mode is consistent with previous biochemical studies and recent work identifying the key pharmacophores of GE81112.
