9EZY image
Deposition Date 2024-04-14
Release Date 2024-09-04
Last Version Date 2024-09-04
Entry Detail
PDB ID:
9EZY
Keywords:
Title:

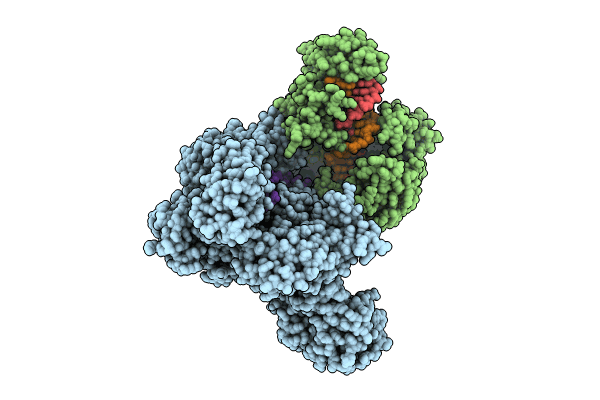

Vibrio cholerae DdmD-DdmE holo complex
Biological Source:
Source Organism:
Method Details:
Experimental Method:
Resolution:
2.56 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Helicase/UvrB N-terminal domain-containing protein
Gene (Uniprot):VC_1771
Chain IDs:A
Chain Length:1193
Number of Molecules:1
Biological Source:Vibrio cholerae
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Vibrio cholerae DdmE
Gene (Uniprot):VC_1770
Chain IDs:B
Chain Length:690
Number of Molecules:1
Biological Source:Vibrio cholerae
Polymer Type:polydeoxyribonucleotide
Molecule:14 nucleotide DNA guide with terminal 5' phosphate
Chain IDs:C
Chain Length:15
Number of Molecules:1
Biological Source:synthetic construct
Polymer Type:polydeoxyribonucleotide
Molecule:Target DNA strand
Chain IDs:D
Chain Length:66
Number of Molecules:1
Biological Source:synthetic construct
Polymer Type:polydeoxyribonucleotide
Molecule:Non-target DNA strand
Chain IDs:E
Chain Length:66
Number of Molecules:1
Biological Source:synthetic construct
Ligand Molecules
Primary Citation
Molecular mechanism of plasmid elimination by the DdmDE defense system.
Science 385 188 194 (2024)
PMID: 38870273 DOI: 10.1126/science.adq0534

Abstact

Seventh-pandemic Vibrio cholerae strains contain two pathogenicity islands that encode the DNA defense modules DdmABC and DdmDE. In this study, we used cryogenic electron microscopy to determine the mechanistic basis for plasmid defense by DdmDE. The helicase-nuclease DdmD adopts an autoinhibited dimeric architecture. The prokaryotic Argonaute protein DdmE uses a DNA guide to target plasmid DNA. The structure of the DdmDE complex, validated by in vivo mutational studies, shows that DNA binding by DdmE triggers disassembly of the DdmD dimer and loading of monomeric DdmD onto the nontarget DNA strand. In vitro studies indicate that DdmD translocates in the 5'-to-3' direction, while partially degrading the plasmid DNA. These findings provide critical insights into the mechanism of DdmDE systems in plasmid elimination.
