9EF1 image
Deposition Date 2024-11-19
Release Date 2025-10-01
Last Version Date 2025-10-01
Entry Detail
PDB ID:
9EF1
Keywords:
STRUCTURAL PROTEIN
Title:

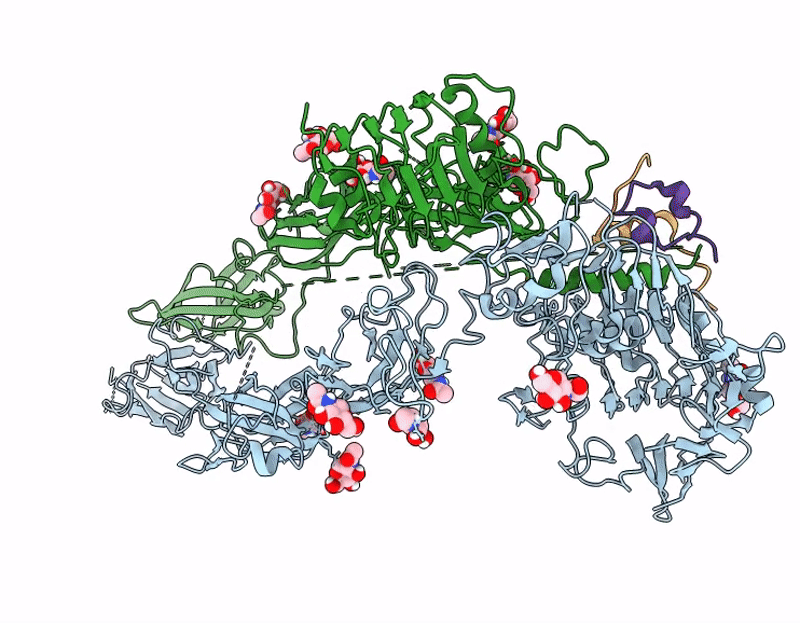

Cryo-EM structure of Drosophila melanogaster insulin receptor (dmIR) bound with one DILP1, asymmetric conformation
Biological Source:
Source Organism:
Drosophila melanogaster (Taxon ID: 7227)
Host Organism:
Baculovirus expression vector pFastBac1-HM
Method Details:
Experimental Method:
ELECTRON MICROSCOPY
Resolution:
4.40 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
9EF1 validation report
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Insulin-like receptor
Gene (Uniprot):InR
Chain IDs:C (auth: A), D (auth: B)
Chain Length:2144
Number of Molecules:2
Biological Source:Drosophila melanogaster
UniProt ID:P09208 Pfam ID:PF01030, PF00757, PF00041, PF07714 EC:2.7.10.1
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:DILP1 B-chain
Gene (Uniprot):Ilp1
Chain IDs:A (auth: C)
Chain Length:41
Number of Molecules:1
Biological Source:Drosophila melanogaster
UniProt ID:Q9VT50
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:DILP1 A-chain
Gene (Uniprot):Ilp1
Chain IDs:B (auth: D)
Chain Length:27
Number of Molecules:1
Biological Source:Drosophila melanogaster
UniProt ID:Q9VT50
Ligand Molecules
NAG
Primary Citation
Structural basis of the activation of the Drosophila insulin receptor by three Drosophila insulin-like peptides
To Be Published ? ? ? (?)
Primary Citation of related structures
9EF1
