8ZRD image
Deposition Date 2024-06-04
Release Date 2025-09-10
Last Version Date 2025-09-10
Entry Detail
PDB ID:
8ZRD
Title:

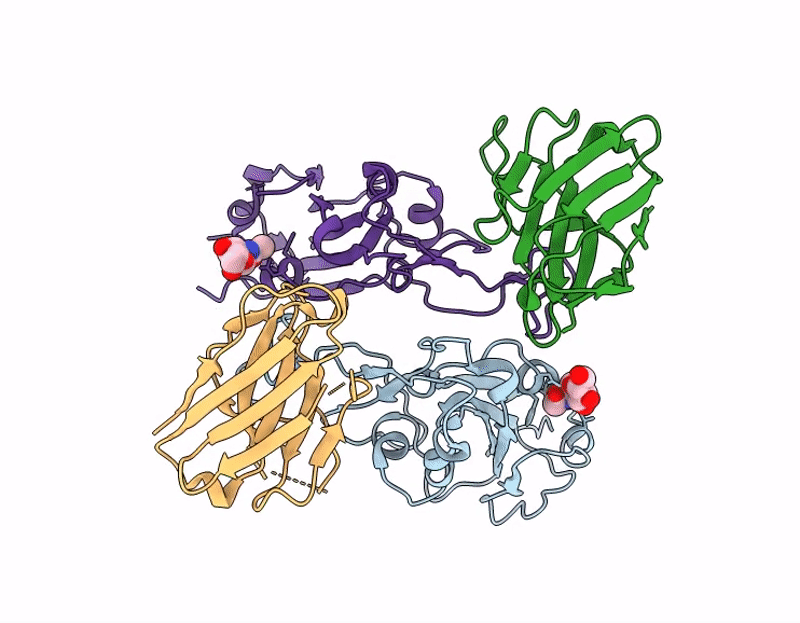

The complex structure of SARS-CoV-2 RBD and llama single-domain antibody S4
Biological Source:
Method Details:
Experimental Method:
Resolution:
2.72 Å
R-Value Free:
0.29
R-Value Work:
0.23
R-Value Observed:
0.23
Space Group:
P 61 2 2
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Spike protein S1
Gene (Uniprot):S
Chain IDs:A, D (auth: E)
Chain Length:220
Number of Molecules:2
Biological Source:Severe acute respiratory syndrome coronavirus 2
Polymer Type:polypeptide(L)
Molecule:llama single-domain antibody S4
Chain IDs:B (auth: C), C (auth: D)
Chain Length:144
Number of Molecules:2
Biological Source:Lama glama
Ligand Molecules
Primary Citation
Identification of a potent SARS-CoV-2 neutralizing nanobody targeting the receptor-binding domain of the spike protein.
Int.J.Biol.Macromol. 281 136403 136403 (2024)
PMID: 39383917 DOI: 10.1016/j.ijbiomac.2024.136403

Abstact

SARS-CoV-2 and its variants continue to pose a significant threat to public health. Nanobodies (Nbs) that inhibit the interaction between the receptor-binding domain (RBD) of the spike protein and the host cell receptor angiotensin-converting enzyme 2 (ACE2) are promising drug candidates. In this study, we report the discovery and structural characterization of a potent Nb that targets the RBD. By screening a phage display alpaca naive Nbs library using the RBD as bait, we identified sixteen candidate Nbs. Of these, nine exhibited nanomolar to micromolar binding affinity and strong neutralizing activity against pseudotyped SARS-CoV-2 viruses, with NbS4 showing the highest neutralization potency. The crystal structure of the SARS-CoV-2 RBD in complex with NbS4 revealed that this Nb binds to a site partially overlapping the ACE2 binding region. Importantly, the key binding residues of NbS4 in the RBD are conserved across most known variants, making it a promising candidate for COVID-19 treatment.
