ISDA: 8ZJY

Deposition Date 2024-05-15

Release Date 2025-11-26

Last Version Date 2025-11-26

Entry Detail

PDB ID:

8ZJY

Keywords:

IMMUNE SYSTEM

Title:

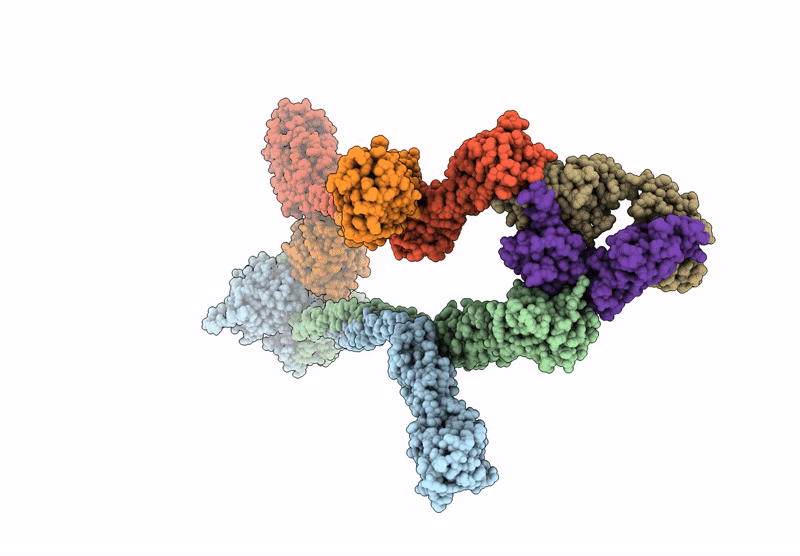

Cryo-EM structure of pAg-bound BTN2A1-BTN3A1-BTN3A3 in complex with Vgamma9-Vdelta2 TCR (G115 genotype)

Biological Source:

Source Organism:

Homo sapiens (Taxon ID: 9606)

Host Organism:

Homo sapiens

Method Details:

Experimental Method:

ELECTRON MICROSCOPY

Resolution:

3.70 Å

Aggregation State:

PARTICLE

Reconstruction Method:

SINGLE PARTICLE

Download Validation Report

Macromolecular Entities

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Butyrophilin subfamily 2 member A1
Gene (Uniprot):BTN2A1
Chain IDs:A, B
Chain Length:534
Number of Molecules:2
Biological Source:Homo sapiens

UniProt ID:Q7KYR7 Pfam ID:PF07686, PF22705, PF13765, PF00622

Polymer Type:polypeptide(L)
Molecule:T cell receptor delta variable 2, T cell receptor delta constant 1
Chain IDs:C (auth: D)
Chain Length:204
Number of Molecules:1
Biological Source:Homo sapiens

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Butyrophilin subfamily 3 member A3
Gene (Uniprot):BTN3A3
Chain IDs:D (auth: E)
Chain Length:589
Number of Molecules:1
Biological Source:Homo sapiens

UniProt ID:O00478 Pfam ID:PF07686, PF22705, PF13765, PF00622

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Butyrophilin subfamily 3 member A1
Gene (Uniprot):BTN3A1
Chain IDs:E (auth: F)
Chain Length:484
Number of Molecules:1
Biological Source:Homo sapiens

UniProt ID:O00481 Pfam ID:PF07686, PF22705, PF13765, PF00622

Polymer Type:polypeptide(L)
Molecule:T cell receptor gamma variable 9, T cell receptor gamma constant 1
Chain IDs:F (auth: G)
Chain Length:229
Number of Molecules:1
Biological Source:Homo sapiens

Ligand Molecules

H6P

Primary Citation

Phosphoantigen-Driven Dissociation of Butyrophilin Oligomers Activates gamma delta T Cells

Xin, W, Huang, B, Gao, W, Zhang, W, Hu, Y, Liu, Y, Liang, E, Shi, Y, Su, Q, Zhou, Q.Show

Biorxiv ? ? ? (2025)

DOI: 10.1101/2025.09.26.677252
