8Z5X image
Deposition Date 2024-04-18
Release Date 2025-10-22
Last Version Date 2025-10-22
Entry Detail
PDB ID:
8Z5X
Keywords:
MOTOR PROTEIN
Title:

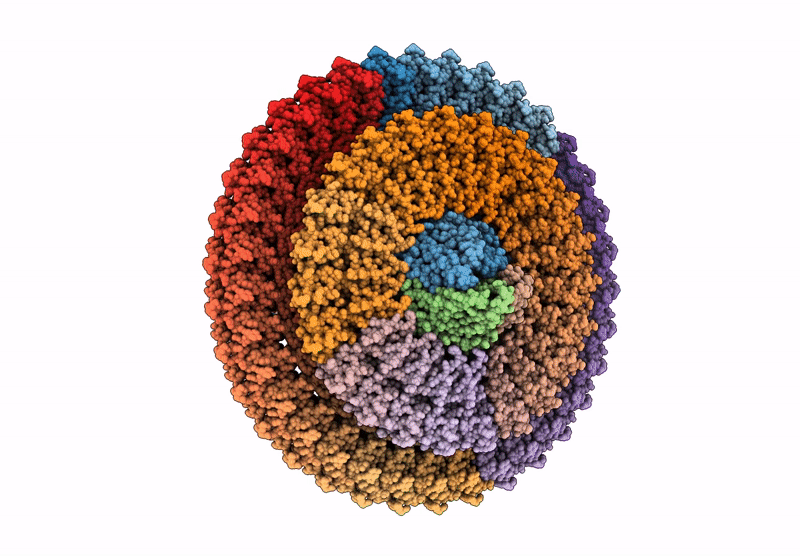

Cryo-EM structure of the MS ring with the proximal rod and the export apparatus (C1) within the polar flagellar motor
Biological Source:
Source Organism:
Vibrio alginolyticus (Taxon ID: 663)
Method Details:
Experimental Method:
ELECTRON MICROSCOPY
Resolution:
3.64 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
8Z5X validation report
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Flagellar biosynthetic protein FliP
Gene (Uniprot):fliP_2
Chain IDs:A (auth: 0), J (auth: 9), AA (auth: AP), VA (auth: Ak), WA (auth: Al)
Chain Length:289
Number of Molecules:5
Biological Source:Vibrio alginolyticus
UniProt ID:A0A1W6TTE6 Pfam ID:PF00813
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Flagellar M-ring protein
Gene (Uniprot):fliF
Chain IDs:B (auth: 1), C (auth: 2), D (auth: 3), E (auth: 4), F (auth: 5), K (auth: A), L (auth: AA), M (auth: AB), N (auth: AC), O (auth: AD), P (auth: AE), Q (auth: AF), R (auth: AG), S (auth: AH), T (auth: AI), U (auth: AJ), V (auth: AK), W (auth: AL), X (auth: AM), Y (auth: AN), Z (auth: AO), XA (auth: B), YA (auth: C), ZA (auth: D), AB (auth: E), BB (auth: F), CB (auth: G), DB (auth: H), EB (auth: I), FB (auth: J), GB (auth: K), HB (auth: L), IB (auth: M), JB (auth: N), KB (auth: O), LB (auth: P), MB (auth: Q), NB (auth: R), OB (auth: S), PB (auth: T), QB (auth: U), RB (auth: V), SB (auth: W), TB (auth: X), UB (auth: Y), VB (auth: Z), WB (auth: a), XB (auth: b), YB (auth: c), ZB (auth: d), AC (auth: e), BC (auth: f), CC (auth: g), DC (auth: h), EC (auth: i), FC (auth: j), GC (auth: k), HC (auth: l), IC (auth: m), JC (auth: n), KC (auth: o), LC (auth: p), MC (auth: q), NC (auth: r), OC (auth: s), PC (auth: t), QC (auth: u), RC (auth: v), SC (auth: w), TC (auth: x), UC (auth: y), VC (auth: z)
Chain Length:580
Number of Molecules:72
Biological Source:Vibrio alginolyticus
UniProt ID:Q75N27 Pfam ID:PF01514, PF08345
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Flagellar biosynthetic protein FliQ
Gene (Uniprot):fliQ
Chain IDs:G (auth: 6), H (auth: 7), BA (auth: AQ), CA (auth: AR)
Chain Length:89
Number of Molecules:4
Biological Source:Vibrio alginolyticus
UniProt ID:A0A0T7EAU9 Pfam ID:PF01313
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Flagellar biosynthetic protein FliR
Gene (Uniprot):fliR
Chain IDs:I (auth: 8)
Chain Length:260
Number of Molecules:1
Biological Source:Vibrio alginolyticus
UniProt ID:A0A0H0YFV7 Pfam ID:PF01311
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Flagellar basal body rod protein FlgB
Gene (Uniprot):flgB
Chain IDs:DA (auth: AS), EA (auth: AT), FA (auth: AU), GA (auth: AV), HA (auth: AW)
Chain Length:17
Number of Molecules:5
Biological Source:Vibrio alginolyticus
UniProt ID:A0A0G9LZG6
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Flagellar basal-body rod protein FlgC
Gene (Uniprot):flgC
Chain IDs:IA (auth: AX), JA (auth: AY), KA (auth: AZ), LA (auth: Aa), MA (auth: Ab), NA (auth: Ac)
Chain Length:580
Number of Molecules:6
Biological Source:Vibrio alginolyticus
UniProt ID:A0A0G9LZH2 Pfam ID:PF00460, PF06429
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Flagellar hook-basal body complex protein FliE
Gene (Uniprot):fliE
Chain IDs:OA (auth: Ad), PA (auth: Ae), QA (auth: Af), RA (auth: Ag), SA (auth: Ah), TA (auth: Ai)
Chain Length:580
Number of Molecules:6
Biological Source:Vibrio alginolyticus
UniProt ID:A0A2L2K9J6 Pfam ID:PF02049
Polymer Type:polypeptide(L)
Molecule:Flagellar biosynthetic protein FlhB
Chain IDs:UA (auth: Aj)
Chain Length:376
Number of Molecules:1
Biological Source:Vibrio alginolyticus
Polymer Type:polypeptide(L)
Molecule:Alanine-modelled FlgB-Dc loop
Chain IDs:WC (auth: Am), XC (auth: An), YC (auth: Ao), ZC (auth: Ap), AD (auth: Aq)
Chain Length:13
Number of Molecules:5
Biological Source:Vibrio alginolyticus
Polymer Type:polypeptide(L)
Molecule:FliE-helix 1
Chain IDs:BD (auth: Ar), CD (auth: As), DD (auth: At), ED (auth: Au), FD (auth: Av), GD (auth: Aw)
Chain Length:17
Number of Molecules:6
Biological Source:Vibrio alginolyticus
Ligand Molecules
NA
Primary Citation
Cryo-EM structure of the MS ring with the proximal rod and the export apparatus (C1) within the polar flagellar motor
To Be Published ? ? ? (?)
Primary Citation of related structures
8Z5X
