ISDA: 8Y72

Deposition Date 2024-02-03

Release Date 2025-08-06

Last Version Date 2025-08-06

Entry Detail

PDB ID:

8Y72

Keywords:

MEMBRANE PROTEIN

Title:

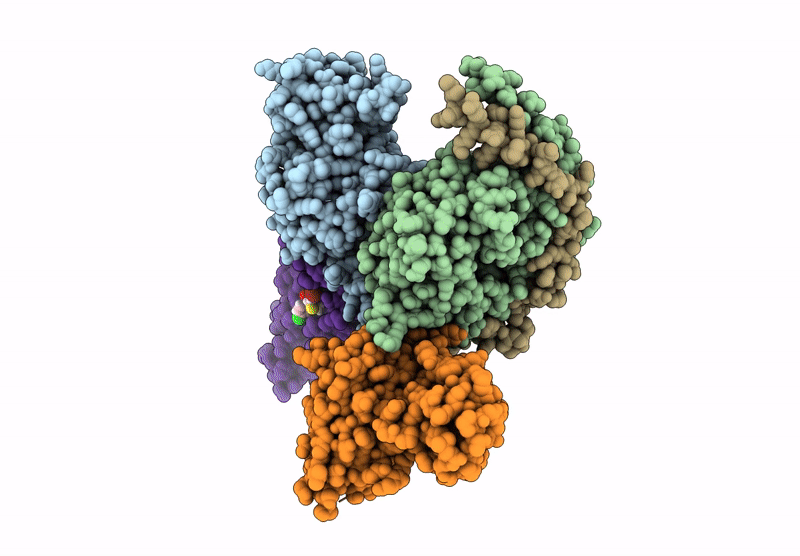

positive allosteric modulator(BMS986122)-bound mu-opioid receptor-Gi complex

Biological Source:

Source Organism:

Homo sapiens (Taxon ID: 9606)
Rattus norvegicus (Taxon ID: 10116)
Bos taurus (Taxon ID: 9913)
synthetic construct (Taxon ID: 32630)

Host Organism:

Spodoptera frugiperda

Method Details:

Experimental Method:

ELECTRON MICROSCOPY

Resolution:

2.65 Å

Aggregation State:

PARTICLE

Reconstruction Method:

SINGLE PARTICLE

Download Validation Report

Macromolecular Entities

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Guanine nucleotide-binding protein G(i) subunit alpha-1
Gene (Uniprot):GNAI1
Chain IDs:A
Chain Length:354
Number of Molecules:1
Biological Source:Homo sapiens

UniProt ID:P63096 Pfam ID:PF00503

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Gene (Uniprot):Gnb1
Chain IDs:B
Chain Length:353
Number of Molecules:1
Biological Source:Rattus norvegicus

UniProt ID:P54311 Pfam ID:PF00400

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Gene (Uniprot):GNG2
Chain IDs:C
Chain Length:68
Number of Molecules:1
Biological Source:Bos taurus

UniProt ID:P63212 Pfam ID:PF00631

Polymer Type:polypeptide(L)
Molecule:TYR-DAL-GLY-MEA-ETA
Chain IDs:F (auth: D)
Chain Length:5
Number of Molecules:1
Biological Source:synthetic construct

Polymer Type:polypeptide(L)
Molecule:scFv16
Chain IDs:D (auth: E)
Chain Length:248
Number of Molecules:1
Biological Source:synthetic construct

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Mu-type opioid receptor
Gene (Uniprot):OPRM1
Chain IDs:E (auth: R)
Chain Length:403
Number of Molecules:1
Biological Source:Homo sapiens

UniProt ID:P35372 Pfam ID:PF00001

Ligand Molecules
