ISDA: 8K22

Deposition Date 2023-07-12

Release Date 2024-07-17

Last Version Date 2025-07-23

Entry Detail

PDB ID:

8K22

Keywords:

RNA BINDING PROTEIN/DNA/RNA

Title:

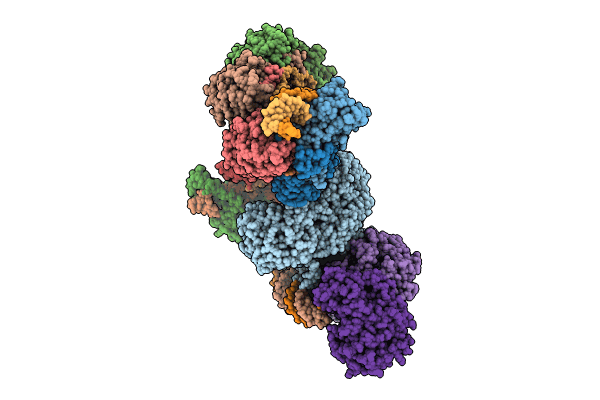

ICP1 Csy-dsDNA-Cas1-Cas2/3 complex (half form)

Biological Source:

Source Organism:

Vibrio phage ICP1_2004_A (Taxon ID: 979527)

Host Organism:

Escherichia coli

Method Details:

Experimental Method:

ELECTRON MICROSCOPY

Resolution:

2.92 Å

Aggregation State:

PARTICLE

Reconstruction Method:

SINGLE PARTICLE

Download Validation Report

Macromolecular Entities

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Csy1
Gene (Uniprot):TUST1-10_00450
Chain IDs:A (auth: B)
Chain Length:178
Number of Molecules:1
Biological Source:Vibrio phage ICP1_2004_A

UniProt ID:F1D5V8

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Csy2
Gene (Uniprot):TUST1-10_00445
Chain IDs:B (auth: C)
Chain Length:248
Number of Molecules:1
Biological Source:Vibrio phage ICP1_2004_A

UniProt ID:F1D5V7 Pfam ID:PF09614

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Cas1
Gene (Uniprot):TUST1-10_00460
Chain IDs:C (auth: D), D (auth: E), P (auth: d), Q (auth: e)
Chain Length:295
Number of Molecules:4
Biological Source:Vibrio phage ICP1_2004_A

UniProt ID:F1D5W0 Pfam ID:PF01867

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Csy3
Gene (Uniprot):TUST1-10_00440
Chain IDs:E (auth: G), G (auth: I), H (auth: J), I (auth: K), J (auth: L), K (auth: M)
Chain Length:306
Number of Molecules:6
Biological Source:Vibrio phage ICP1_2004_A

UniProt ID:F1D5V6 Pfam ID:PF09615

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Csy4
Gene (Uniprot):TUST1-10_00435
Chain IDs:F (auth: H)
Chain Length:168
Number of Molecules:1
Biological Source:Vibrio phage ICP1_2004_A

UniProt ID:F1D5V5 Pfam ID:PF09618

Polymer Type:polyribonucleotide
Molecule:RNA (60-MER)
Chain IDs:L (auth: P)
Chain Length:60
Number of Molecules:1
Biological Source:Vibrio phage ICP1_2004_A

Polymer Type:polydeoxyribonucleotide
Molecule:DNA (43-MER)
Chain IDs:M (auth: Q), S (auth: U)
Chain Length:43
Number of Molecules:2
Biological Source:Vibrio phage ICP1_2004_A

Polymer Type:polydeoxyribonucleotide
Molecule:DNA (31-MER)
Chain IDs:N (auth: R)
Chain Length:31
Number of Molecules:1
Biological Source:Vibrio phage ICP1_2004_A

Polymer Type:polydeoxyribonucleotide
Molecule:DNA (5'-D(*AP*TP*CP*TP*TP*CP*CP*CP*TP*AP*TP*TP*TP*AP*AP*AP*TP*TP*GP*CP*T)-3')
Chain IDs:T (auth: V)
Chain Length:21
Number of Molecules:1
Biological Source:Vibrio phage ICP1_2004_A

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:HD Cas3-type domain-containing protein
Gene (Uniprot):TUST1-10_00455
Chain IDs:O (auth: a), R (auth: A)
Chain Length:930
Number of Molecules:2
Biological Source:Vibrio phage ICP1_2004_A

UniProt ID:F1D5V9 Pfam ID:PF22590

Ligand Molecules

Primary Citation

Structure of csy complex with long DNA State2

Zhang, L.X, Feng, Y.Show

To Be Published ? ? ? (?)
