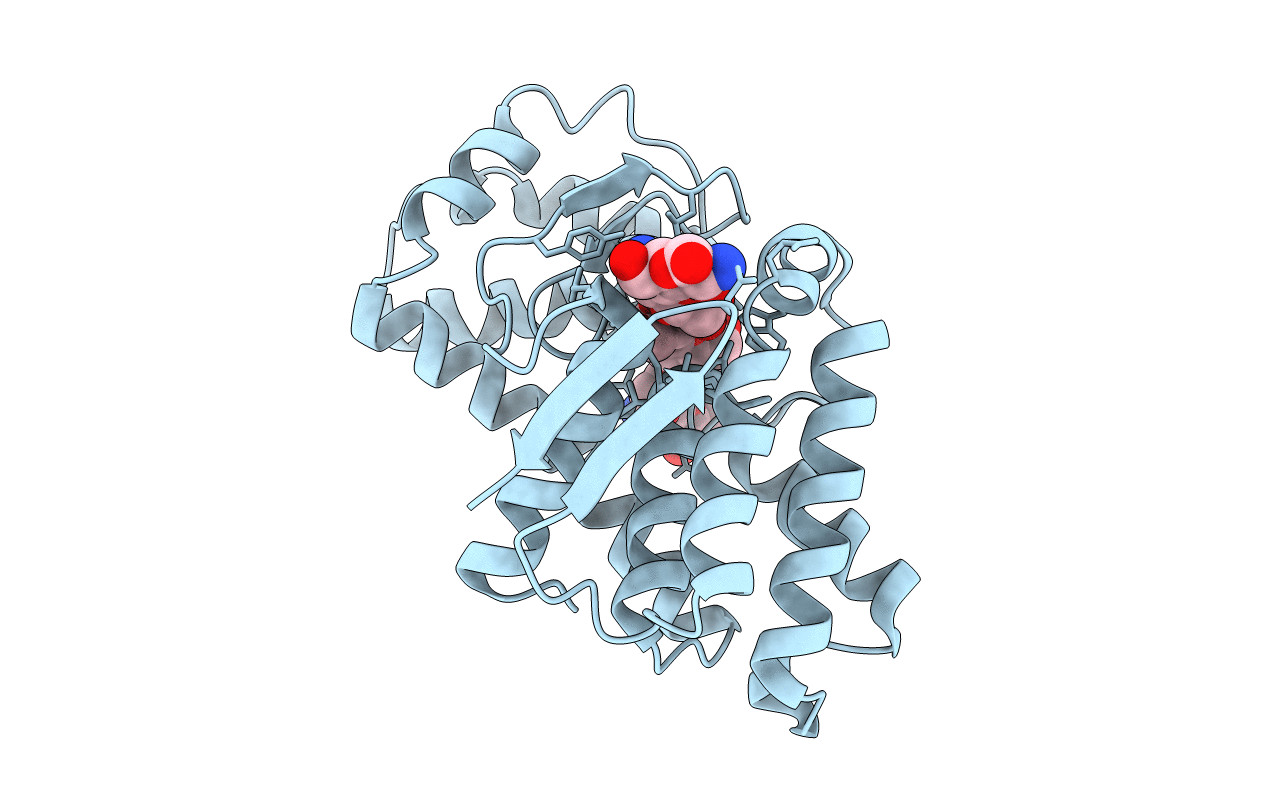

7C6D image
Deposition Date 2020-05-21
Release Date 2021-03-31
Last Version Date 2023-11-29
Entry Detail
PDB ID:
7C6D
Keywords:
Title:
Crystal structure of E19A mutant chitosanase from Bacillus subtilis MY002 complexed with 6 GlcN.
Biological Source:
Host Organism:
Method Details:
Experimental Method:
Resolution:
1.45 Å
R-Value Free:
0.16
R-Value Work:
0.13
R-Value Observed:
0.13
Space Group:
P 21 21 21
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Chitosanase
Gene (Uniprot):csn
Mutagens:E19A
Chain IDs:A
Chain Length:242
Number of Molecules:1
Biological Source:Bacillus subtilis subsp. subtilis str. 168
Primary Citation
Structure-based rational design of chitosanase CsnMY002 for high yields of chitobiose.
Colloids Surf B Biointerfaces 202 111692 111692 (2021)
PMID: 33744813 DOI: 10.1016/j.colsurfb.2021.111692

Abstact

Chitosan oligosaccharides (COS) are attractive active molecules for biomedical applications. Currently, the prohibitively high cost of producing fully defined COS hampers extensive studies on their biological activity and restricts their use in various industries. Thus, cost-effective production of pure COS is of major importance. In this report, chitosanase from Bacillus subtilis MY002 (CsnMY002) was prepared for COS production. The structure of apo CsnMY002 displayed an unexpected tunnel-like substrate-binding site and the structure of the CsnMY002_E19A/(GlcN)6 complex highlighted the "4 + 2″ splitting of hexaglucosamine even though the "3 + 3″ splitting is also observed in the TLC analysis of the enzyme products for hexaglucosamine. Structure based rational design was performed to generate mutants for chitobiose production. The CsnMY002_G21 K mutant produced chitobiose with a relative content > 87 % from chitosan with a low degree of acetylation, and 50.65 mg chitobiose with a purity > 98 % was prepared from 100 mg chitosan. The results provide insight on the catalytic mechanism of chitosanase and underpin future biomedical applications of pure chitobiose.

Legend

Protein

Chemical

Disease

Primary Citation of related structures
