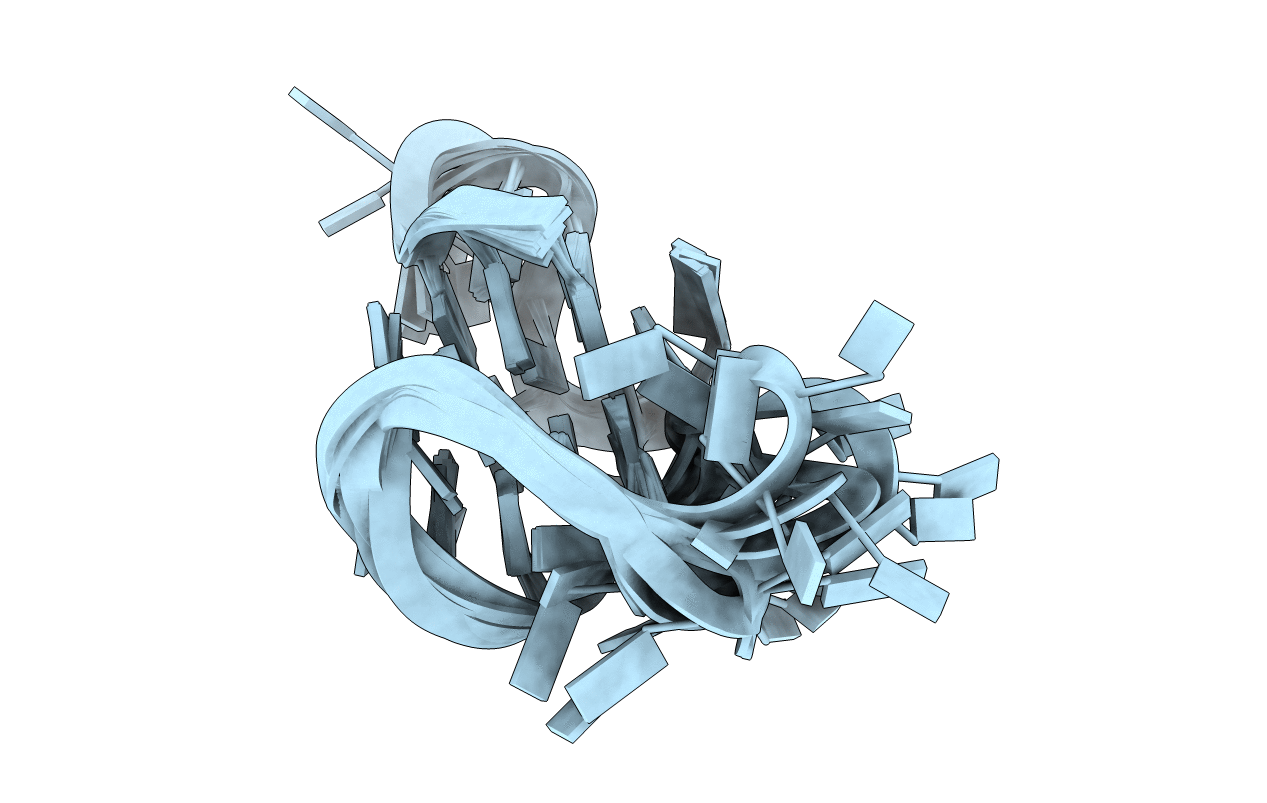

6YCV image
Deposition Date 2020-03-19
Release Date 2020-09-02
Last Version Date 2024-05-15
Entry Detail
PDB ID:
6YCV
Keywords:
Title:
2'-F-riboguanosine and LNA modified hybrid type G-quadruplex with V-loop
Biological Source:
Source Organism:
Method Details:
Experimental Method:
Conformers Calculated:
10
Conformers Submitted:
10
Selection Criteria:
all calculated structures submitted
Macromolecular Entities
Polymer Type:polydeoxyribonucleotide
Molecule:DNA (5'-D(*GP*GP*GP*AP*TP*GP*GP*GP*AP*CP*AP*CP*AP*(GF2))-R(P*(LCG))-D(P*GP*GP*AP*CP*GP*GP*G)-3')
Chain IDs:A
Chain Length:22
Number of Molecules:1
Biological Source:synthetic construct
Ligand Molecules
Primary Citation
Locked nucleic acid building blocks as versatile tools for advanced G-quadruplex design.
Nucleic Acids Res. 48 10555 10566 (2020)
PMID: 32890406 DOI: 10.1093/nar/gkaa720

Abstact

A hybrid-type G-quadruplex is modified with LNA (locked nucleic acid) and 2'-F-riboguanosine in various combinations at the two syn positions of its third antiparallel G-tract. LNA substitution in the central tetrad causes a complete rearrangement to either a V-loop or antiparallel structure, depending on further modifications at the 5'-neighboring site. In the two distinct structural contexts, LNA-induced stabilization is most effective compared to modifications with other G surrogates, highlighting a potential use of LNA residues for designing not only parallel but various more complex G4 structures. For instance, the conventional V-loop is a structural element strongly favored by an LNA modification at the V-loop 3'-end in contrast with an alternative V-loop, clearly distinguishable by altered conformational properties and base-backbone interactions as shown in a detailed analysis of V-loop structures.
