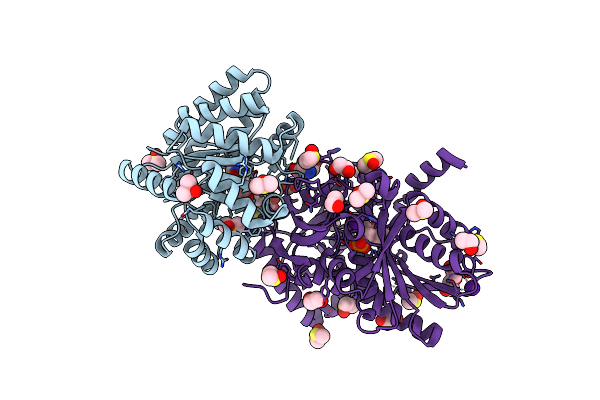

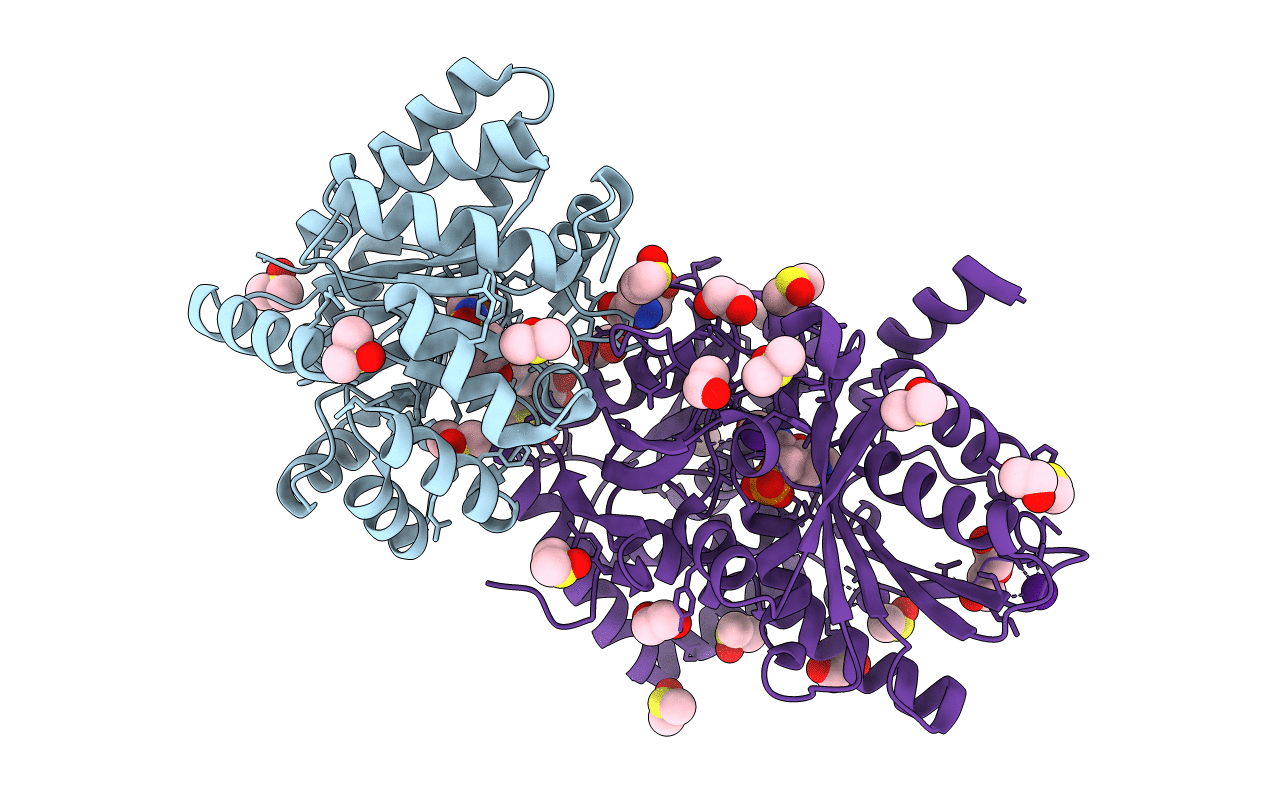

6D0V image
Deposition Date 2018-04-11
Release Date 2019-04-17
Last Version Date 2023-10-04
Entry Detail
PDB ID:
6D0V
Keywords:
LYASE/LYASE INHIBITOR
Title:
Tryptophan synthase Q114A mutant in complex with inhibitor N-(4'-trifluoromethoxybenzenesulfonyl)-2-amino-1-ethylphosphate (F9F) at the alpha-site, aminoacrylate at the beta site, and cesium ion at the metal coordination site
Biological Source:
Source Organism:
Salmonella enterica subsp. enterica serovar Typhimurium str. LT2 (Taxon ID: 99287)
Host Organism:
Escherichia coli
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
1.64 Å
R-Value Free:
0.17
R-Value Work:
0.12
R-Value Observed:
0.13
Space Group:
C 1 2 1
6D0V validation report
Macromolecular Entities
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Tryptophan synthase alpha chain
Gene (Uniprot):trpA
Chain IDs:A
Chain Length:268
Number of Molecules:1
Biological Source:Salmonella enterica subsp. enterica serovar Typhimurium str. LT2
UniProt ID:P00929 Pfam ID:PF00290 EC:4.2.1.20
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Tryptophan synthase beta chain
Gene (Uniprot):trpB
Mutations:Q114A
Chain IDs:B
Chain Length:395
Number of Molecules:1
Biological Source:Salmonella enterica subsp. enterica serovar Typhimurium str. LT2
UniProt ID:P0A2K1 Pfam ID:PF00291
Ligand Molecules
0JO
CL
CS
DMS
EDO
F9F
PEG
SER
Primary Citation
Tryptophan synthase Q114A mutant in complex with inhibitor N-(4'-trifluoromethoxybenzenesulfonyl)-2-amino-1-ethylphosphate (F9F) at the alpha-site, aminoacrylate at the beta site, and cesium ion at the metal coordination site.
To be Published ? ? ? (?)
Primary Citation of related structures
6D0V
