ISDA: 5UUV

Deposition Date 2017-02-17

Release Date 2017-03-01

Last Version Date 2023-10-04

Entry Detail

PDB ID:

5UUV

Keywords:

OXIDOREDUCTASE/OXIDOREDUCTASE INHIBITOR

Title:

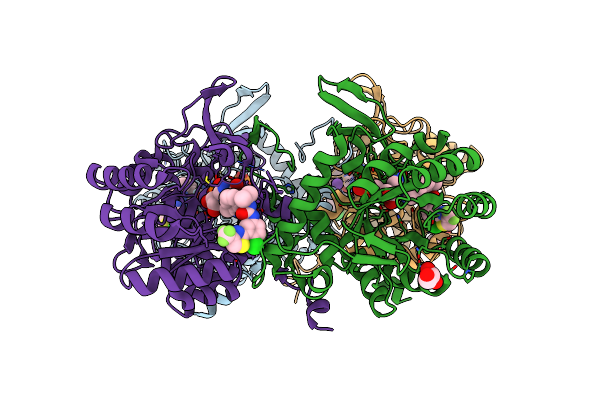

Crystal Structure of the Catalytic Domain of the Inosine Monophosphate Dehydrogenase from Bacillus anthracis in the complex with a product IMP and the inhibitor P182

Biological Source:

Source Organism:

Bacillus anthracis (Taxon ID: 1392)

Host Organism:

Escherichia coli

Method Details:

Experimental Method:

X-RAY DIFFRACTION

Resolution:

2.75 Å

R-Value Free:

0.24

R-Value Work:

0.19

R-Value Observed:

0.19

Space Group:

P 21 21 21

Download Validation Report

Macromolecular Entities

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Inosine-5'-monophosphate dehydrogenase
Chain IDs:A, B, C, D
Chain Length:384
Number of Molecules:4
Biological Source:Bacillus anthracis

UniProt ID:A0A6L8P2U9 Pfam ID:PF00478

Ligand Molecules

8L1

GOL

IMP

Primary Citation

Crystal Structure of the Catalytic Domain of the Inosine Monophosphate Dehydrogenase from Bacillus anthracis in the complex with a product IMP and the inhibitor P182

Kim, Y, Maltseva, N, Mulligan, R, Makowska-Grzyska, M, Gu, M, Gollapalli, D, Hedstrom, L, Anderson, W.F, Joachimiak, A, Center for Structural Genomics of Infectious Diseases (CSGID)Show

To Be Published ? ? ? (?)

Primary Citation of related structures
