5TDB image
Deposition Date 2016-09-19
Release Date 2017-03-22
Last Version Date 2024-11-06
Entry Detail
PDB ID:
5TDB
Keywords:
Title:

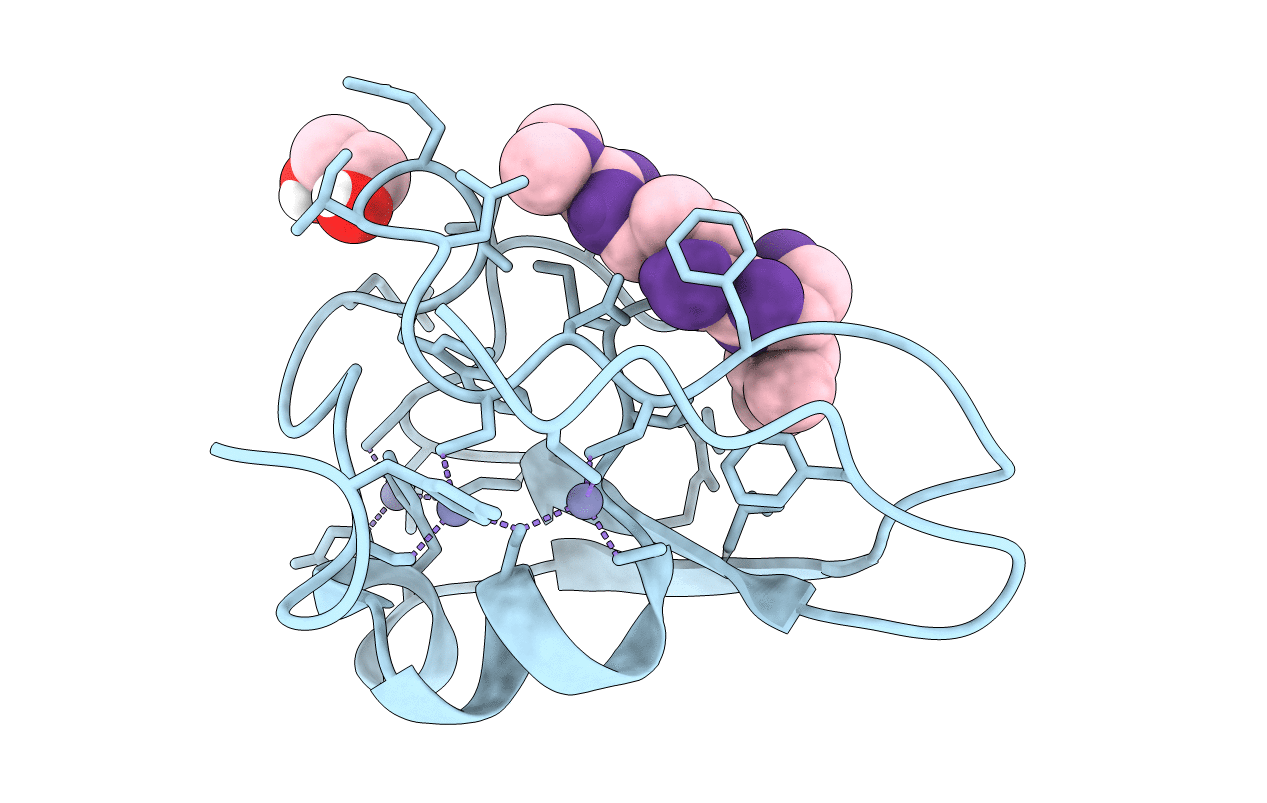

Crystal structure of the human UBR-box domain from UBR2 in complex with asymmetrically double methylated arginine peptide
Biological Source:
Source Organism:
Homo sapiens (Taxon ID: 9606)
Host Organism:
Method Details:
Experimental Method:
Resolution:
1.10 Å
R-Value Free:
0.13
R-Value Work:
0.12
R-Value Observed:
0.12
Space Group:
P 1 21 1
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:E3 ubiquitin-protein ligase UBR2
Gene (Uniprot):UBR2
Chain IDs:A
Chain Length:76
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:DA2-ILE-PHE-SER peptide
Chain IDs:B
Chain Length:4
Number of Molecules:1
Biological Source:Homo sapiens
Primary Citation
Bound Waters Mediate Binding of Diverse Substrates to a Ubiquitin Ligase.
Structure 25 719 729.e3 (2017)
PMID: 28392261 DOI: 10.1016/j.str.2017.03.004

Abstact

The N-end rule pathway controls the half-life of proteins based on their N-terminal residue. Positively charged type 1 N-degrons are recognized by a negatively charged pocket on the Zn finger named the UBR box. Here, we show that the UBR box is rigid, but bound water molecules in the pocket provide the structural plasticity required to bind different positively charged amino acids. Ultra-high-resolution crystal structures of arginine, histidine, and methylated arginine reveal that water molecules mediate the binding of N-degron peptides. Using a high-throughput binding assay and isothermal titration calorimetry, we demonstrate that the UBR box is able to bind methylated arginine and lysine peptides with high affinity and measure the preference for hydrophobic residues in the second position in the N-degron peptide. Finally, we show that the V122L mutation present in Johanson-Blizzard syndrome patients changes the specificity for the second position due to occlusion of the secondary pocket.
