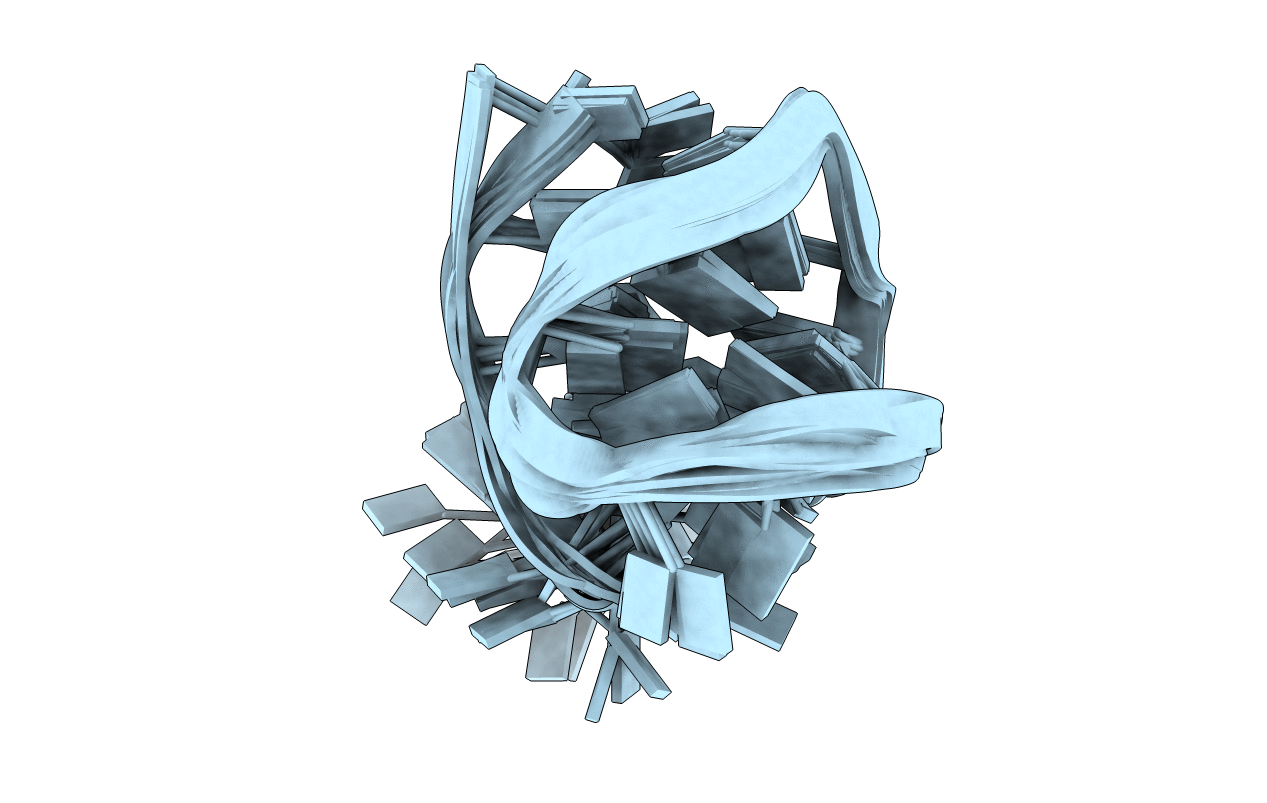

5O4D image
Deposition Date 2017-05-29
Release Date 2018-06-13
Last Version Date 2024-05-15
Entry Detail
PDB ID:
5O4D
Keywords:
Title:
G-quadruplex of Human papillomavirus type 52
Biological Source:
Source Organism:
Method Details:
Experimental Method:
Conformers Calculated:
1000
Conformers Submitted:
10
Selection Criteria:
structures with lowest energy and least restraint violations
Macromolecular Entities
Polymer Type:polydeoxyribonucleotide
Molecule:DNA (5'-D(*GP*GP*GP*TP*AP*GP*GP*GP*CP*AP*GP*GP*GP*GP*AP*CP*AP*CP*AP*GP*GP*GP*T)-3')
Chain IDs:A
Chain Length:23
Number of Molecules:1
Biological Source:Human papillomavirus type 52
Ligand Molecules
Primary Citation
Towards Understanding of Polymorphism of the G-rich Region of Human Papillomavirus Type 52.
Molecules 24 ? ? (2019)
PMID: 30987050 DOI: 10.3390/molecules24071294

Abstact

The potential to affect gene expression via G-quadruplex stabilization has been extended to all domains of life, including viruses. Here, we investigate the polymorphism and structures of G-quadruplexes of the human papillomavirus type 52 with UV, CD and NMR spectroscopy and gel electrophoresis. We show that oligonucleotide with five G-tracts folds into several structures and that naturally occurring single nucleotide polymorphisms (SNPs) have profound effects on the structural polymorphism in the context of G-quadruplex forming propensity, conformational heterogeneity and folding stability. With help of SNP analysis, we were able to select one of the predominant forms, formed by G-rich sequence d(G₃TAG₃CAG₄ACACAG₃T). This oligonucleotide termed HPV52(1-4) adopts a three G-quartet snap back (3 + 1) type scaffold with four syn guanine residues, two edgewise loops spanning the same groove, a no-residue V loop and a propeller type loop. The first guanine residue is incorporated in the central G-quartet and all four-guanine residues from G4 stretch are included in the three quartet G-quadruplex core. Modification studies identified several structural elements that are important for stabilization of the described G-quadruplex fold. Our results expand set of G-rich targets in viral genomes and address the fundamental questions regarding folding of G-rich sequences.
