ISDA

Deposition Date 2016-05-26

Release Date 2017-04-05

Last Version Date 2024-02-28

Entry Detail

PDB ID:

5K7T

Keywords:

HYDROLASE

Title:

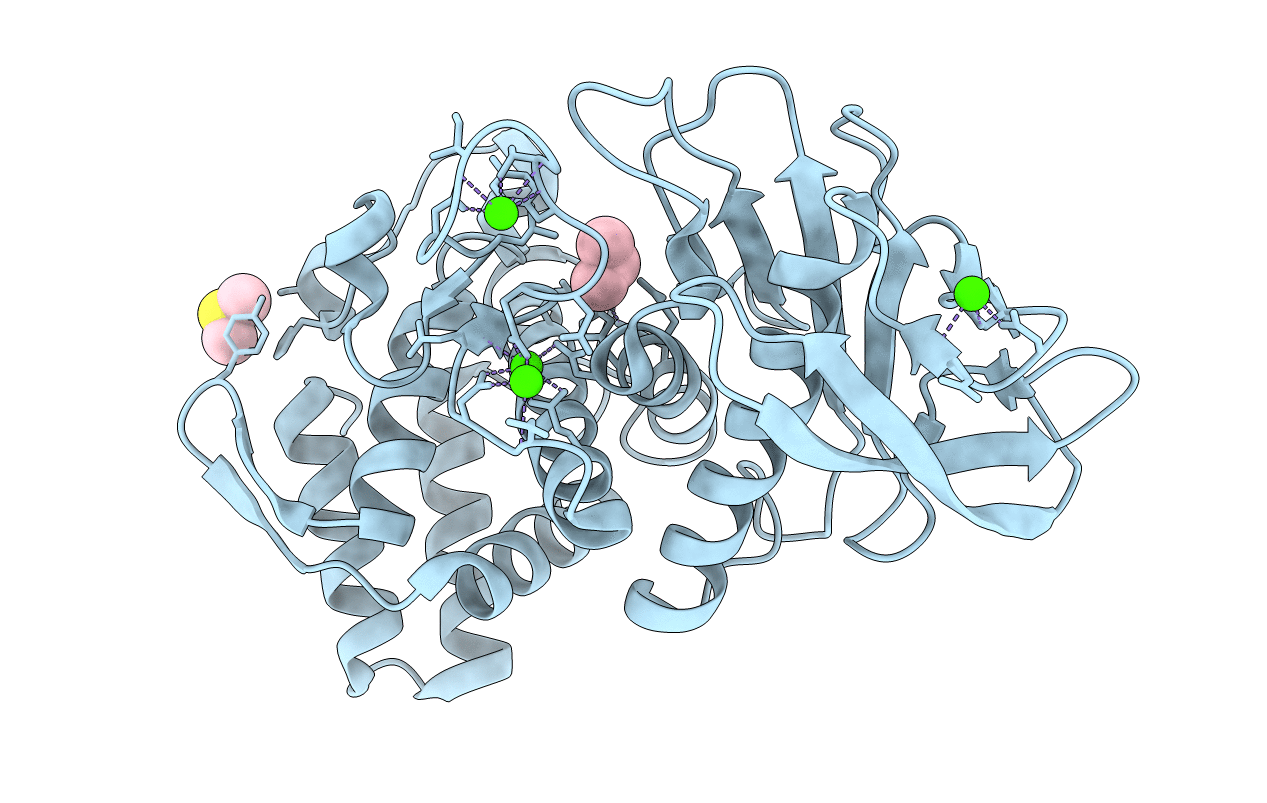

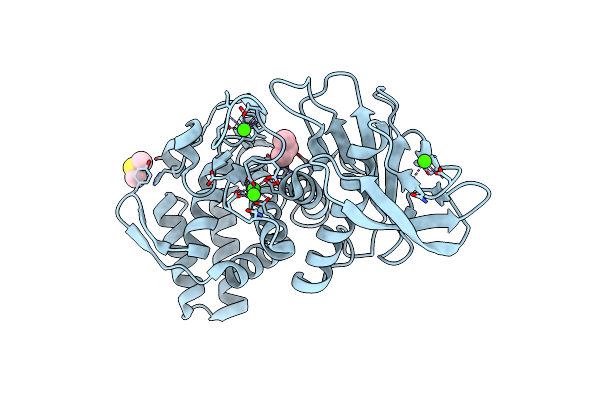

MicroED structure of thermolysin at 2.5 A resolution

Biological Source:

Source Organism:

Bacillus thermoproteolyticus (Taxon ID: 1427)

Method Details:

Experimental Method:

ELECTRON CRYSTALLOGRAPHY

Resolution:

2.50 Å

R-Value Free:

0.30

R-Value Work:

0.28

R-Value Observed:

0.29

Space Group:

P 61 2 2

Download Validation Report

Macromolecular Entities

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Thermolysin
Gene (Uniprot):npr
Chain IDs:A
Chain Length:316
Number of Molecules:1
Biological Source:Bacillus thermoproteolyticus

UniProt ID:P00800 Pfam ID:PF01447, PF02868 EC:3.4.24.27

Ligand Molecules

DMS

IPA

Primary Citation

Atomic-resolution structures from fragmented protein crystals with the cryoEM method MicroED.

de la Cruz, M.J, Hattne, J, Shi, D, Seidler, P, Rodriguez, J, Reyes, F.E, Sawaya, M.R, Cascio, D, Weiss, S.C, Kim, S.K, Hinck, C.S, Hinck, A.P, Calero, G, Eisenberg, D, Gonen, T.Show

Nat. Methods 14 399 402 (2017)

PMID: 28192420 DOI: 10.1038/nmeth.4178

Abstact

Traditionally, crystallographic analysis of macromolecules has depended on large, well-ordered crystals, which often require significant effort to obtain. Even sizable crystals sometimes suffer from pathologies that render them inappropriate for high-resolution structure determination. Here we show that fragmentation of large, imperfect crystals into microcrystals or nanocrystals can provide a simple path for high-resolution structure determination by the cryoEM method MicroED and potentially by serial femtosecond crystallography.
