5HZN image
Deposition Date 2016-02-02
Release Date 2016-04-06
Last Version Date 2024-05-08
Entry Detail
PDB ID:
5HZN
Keywords:
Title:

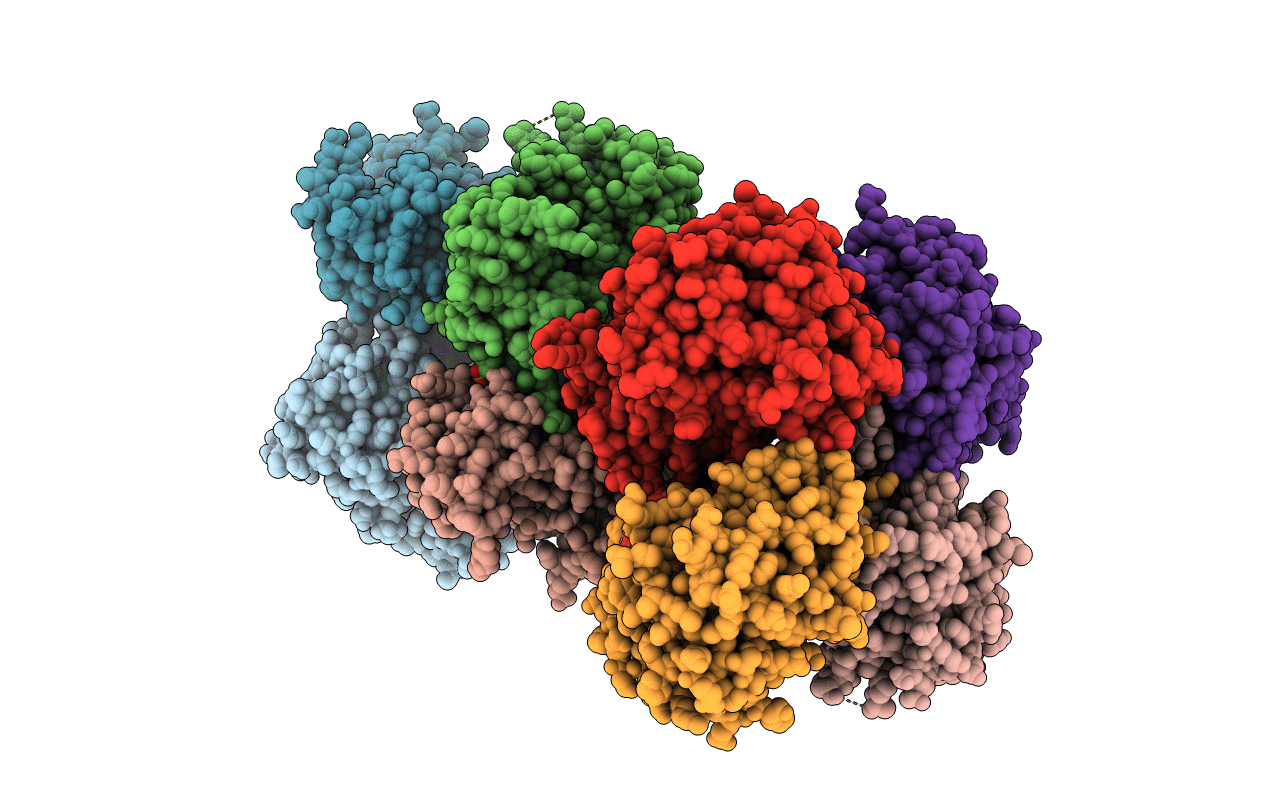

Structure of NVP-AEW541 in complex with IGF-1R kinase
Biological Source:
Source Organism:
Homo sapiens (Taxon ID: 9606)
Method Details:
Experimental Method:
Resolution:
2.20 Å
R-Value Free:
0.21
R-Value Work:
0.19
R-Value Observed:
0.19
Space Group:
C 1 2 1
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Insulin-like growth factor 1 receptor
Gene (Uniprot):IGF1R
Chain IDs:A, B, C, D, E, F, G, H
Chain Length:304
Number of Molecules:8
Biological Source:Homo sapiens
Primary Citation
Identification of a 5-[3-phenyl-(2-cyclic-ether)-methylether]-4-aminopyrrolo[2,3-d]pyrimidine series of IGF-1R inhibitors.
Bioorg.Med.Chem.Lett. 26 2065 2067 (2016)
PMID: 26951750 DOI: 10.1016/j.bmcl.2016.02.074

Abstact

We report structure-guided modifications of the benzyloxy substituent of the Insulin-like Growth Factor-1 Receptor (IGF-1R) inhibitor NVP-AEW541. This chemical group has been shown to confer selectivity against other protein kinases but at the expense of a metabolism liability. X-ray crystallography has revealed that the benzyloxy moiety interacts with a lysine cation of the IGF-1R kinase domain via its ether function and its aromatic π-system and is nicely embedded in an induced hydrophobic pocket. We show that 1,4-diethers displaying an adequate hydrophobic and constrained shape are advantageous benzyloxy replacements. A single digit nanomolar inhibitor (compound 20, IC50=8.9 nM) was identified following this approach.
