ISDA: 5HRK

Deposition Date 2016-01-23

Release Date 2017-01-18

Last Version Date 2024-11-13

Entry Detail

PDB ID:

5HRK

Keywords:

TRANSFERASE/DNA

Title:

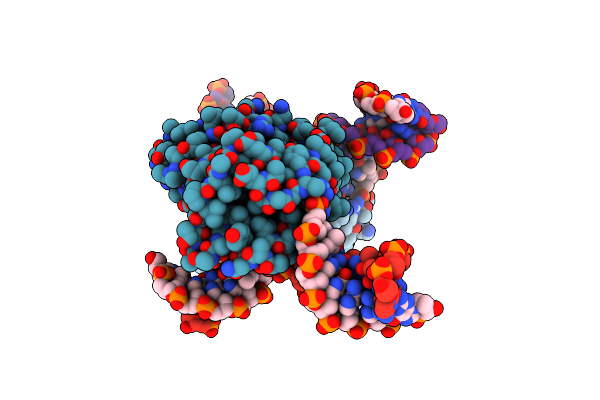

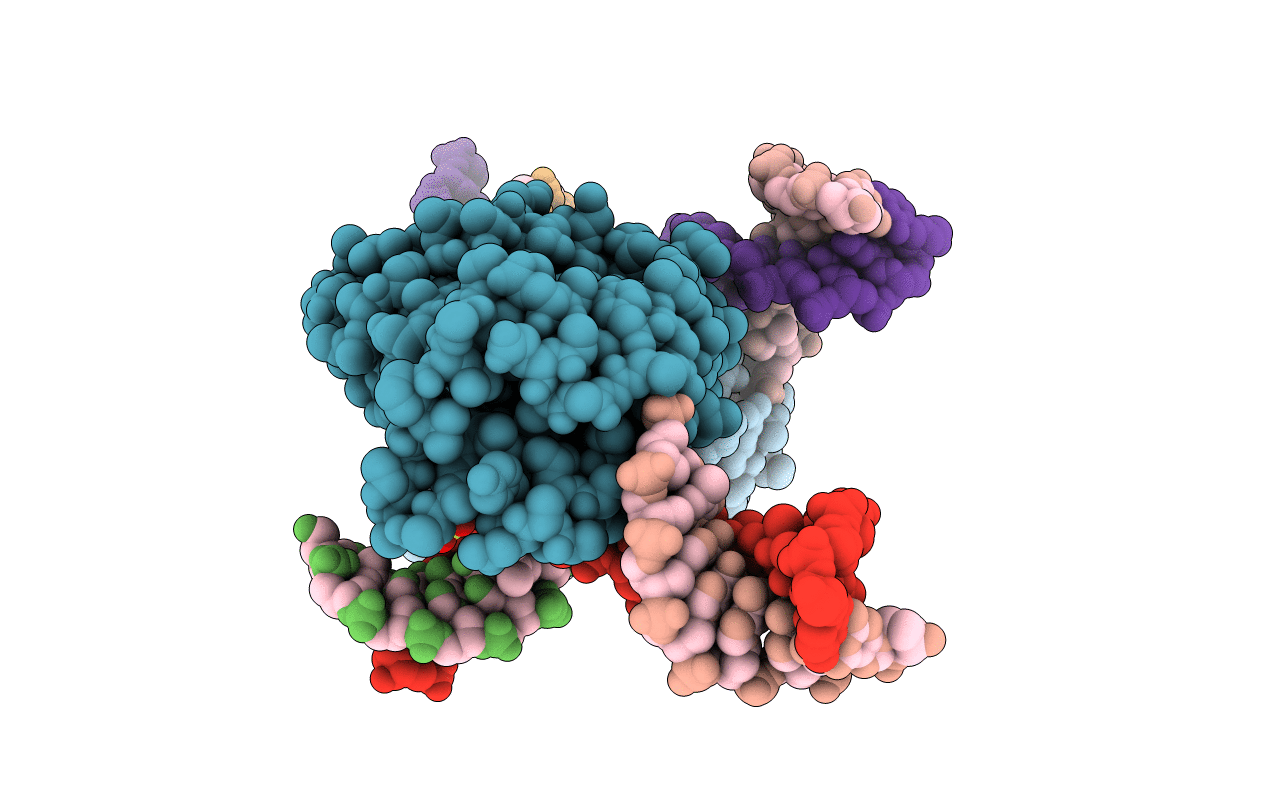

The crystal structure of AsfvPolX(H115F mutant): 1nt-gap(P) DNA2:dGTP ternary complex

Biological Source:

Source Organism:

African swine fever virus (Taxon ID: 10497)
synthetic construct (Taxon ID: 32630)

Host Organism:

Escherichia coli

Method Details:

Experimental Method:

X-RAY DIFFRACTION

Resolution:

2.90 Å

R-Value Free:

0.27

R-Value Work:

0.23

R-Value Observed:

0.23

Space Group:

C 1 2 1

Download Validation Report

Macromolecular Entities

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:DNA polymerase beta-like protein
Mutagens:H115F
Chain IDs:A, B
Chain Length:178
Number of Molecules:2
Biological Source:African swine fever virus

UniProt ID:P42494 Pfam ID:PF01909, PF14791

Polymer Type:polydeoxyribonucleotide
Molecule:DNA (5'-D(*GP*TP*GP*AP*GP*TP*AP*CP*A)-3')
Chain IDs:C (auth: F), F (auth: C)
Chain Length:9
Number of Molecules:2
Biological Source:synthetic construct

Polymer Type:polydeoxyribonucleotide
Molecule:DNA (5'-D(P*AP*TP*AP*GP*AP*AP*CP*G)-3')
Chain IDs:E (auth: G), H (auth: D)
Chain Length:8
Number of Molecules:2
Biological Source:synthetic construct

Polymer Type:polydeoxyribonucleotide
Molecule:DNA (5'-D(*CP*GP*TP*TP*CP*TP*AP*TP*GP*TP*GP*TP*AP*CP*TP*CP*AP*C)-3')
Chain IDs:D (auth: H), G (auth: E)
Chain Length:18
Number of Molecules:2
Biological Source:synthetic construct

Ligand Molecules
