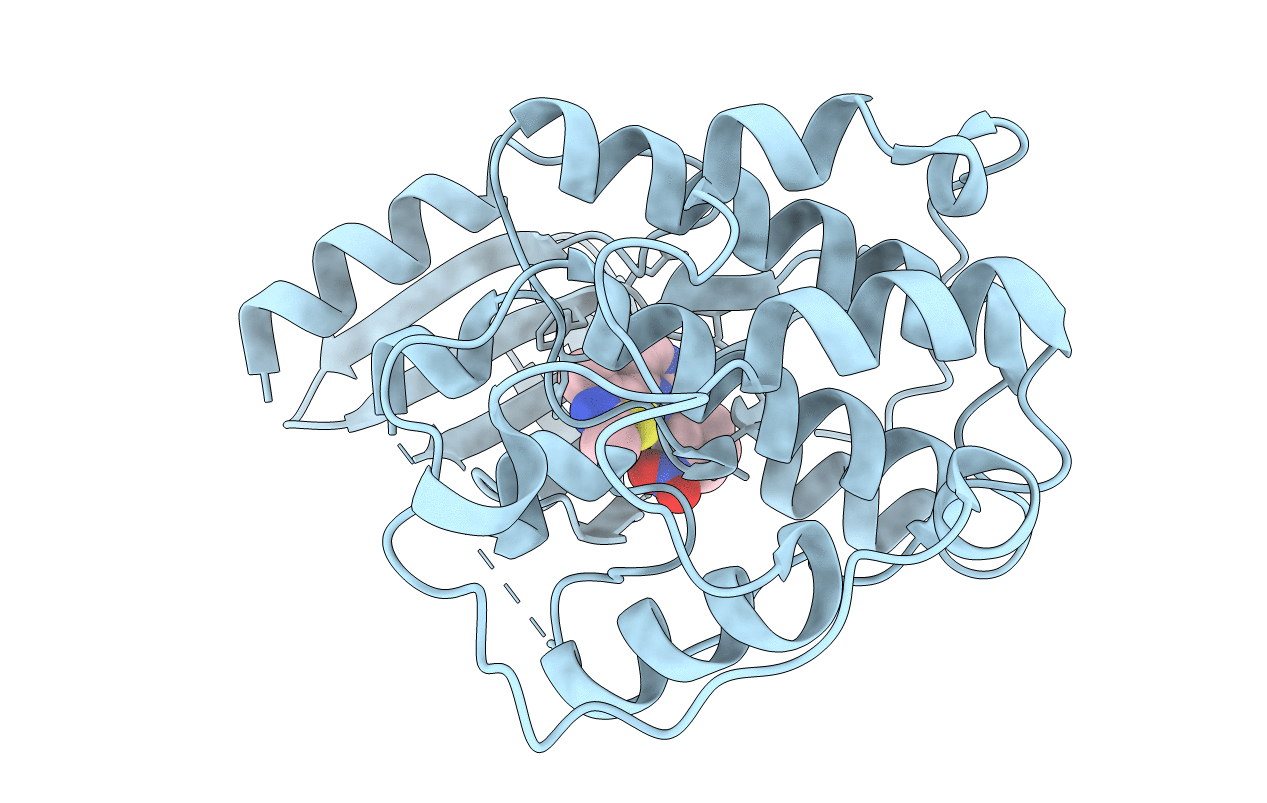

4EK8 image
Deposition Date 2012-04-09
Release Date 2013-05-01
Last Version Date 2024-11-06
Entry Detail
PDB ID:
4EK8
Keywords:
TRANSFERASE/TRANSFERASE INHIBITOR
Title:
Crystal structure of the cdk2 in complex with thiazolylpyrimidine inhibitor
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Trichoplusia ni
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
1.70 Å
R-Value Free:
0.21
R-Value Work:
0.18
R-Value Observed:
0.18
Space Group:
P 21 21 21
4EK8 validation report
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Cyclin-dependent kinase 2
Gene (Uniprot):CDK2
Chain IDs:A
Chain Length:299
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:P24941 Pfam ID:PF00069 EC:2.7.11.22
Ligand Molecules
16K
Primary Citation
Crystal structure of the cdk2 in complex with thiazolylpyrimidine inhibitor
To be Published ? ? ? (?)
Primary Citation of related structures
4EK3
4EK4
4EK5
4EK6
