4BPJ image
Deposition Date 2013-05-27
Release Date 2014-04-09
Last Version Date 2024-05-15
Entry Detail
PDB ID:
4BPJ
Keywords:
Title:

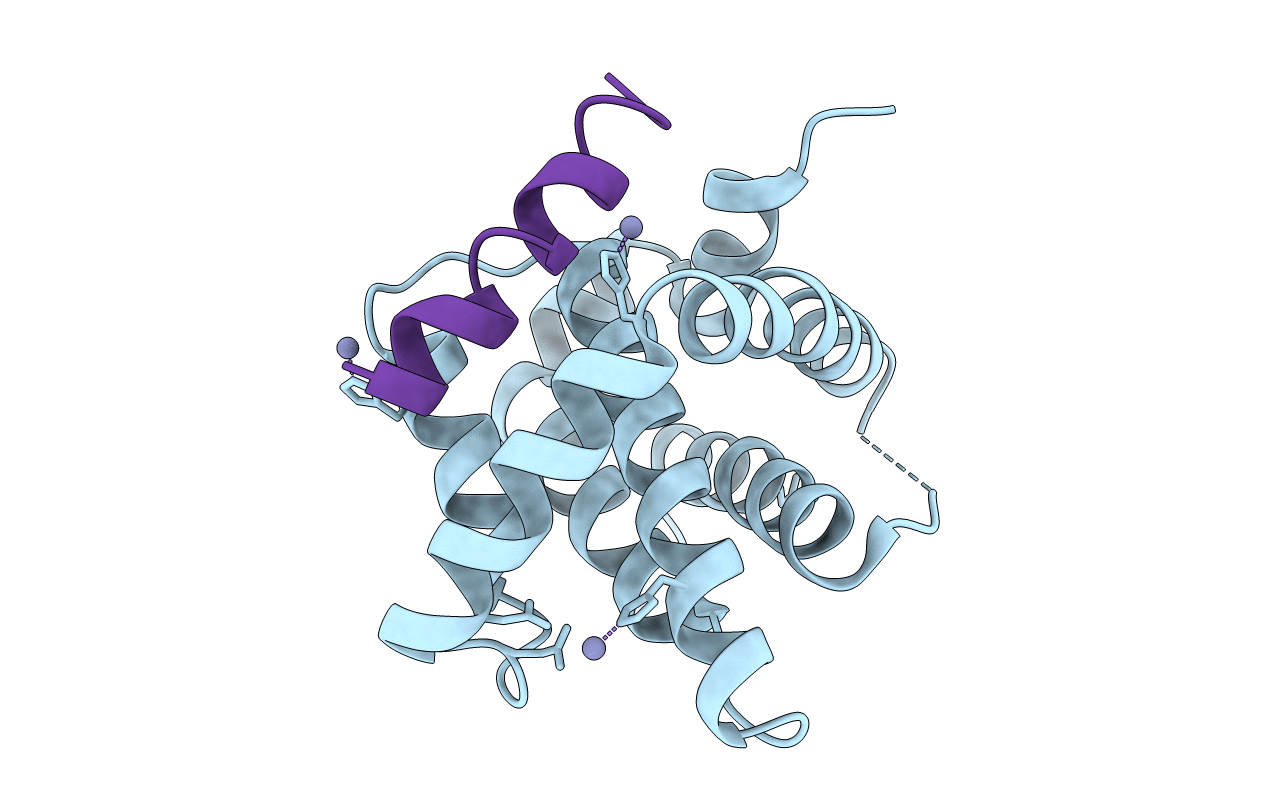

Mcl-1 bound to alpha beta Puma BH3 peptide 3
Biological Source:
Source Organism:
MUS MUSCULUS (Taxon ID: 10090)
HOMO SAPIENS (Taxon ID: 9606)
Host Organism:
Method Details:
Experimental Method:
Resolution:
1.60 Å
R-Value Free:
0.23
R-Value Work:
0.19
R-Value Observed:
0.20
Space Group:
C 1 2 1
Macromolecular Entities
Protein Blast
Polymer Type:polypeptide(L)
Molecule:FUSION PROTEIN CONSISTING OF INDUCED MYELOID LEUKEMIA CELL DIFFERENTIATION PROTEIN MCL-1 HOMOLOG
Gene (Uniprot):Mcl1, MCL1
Chain IDs:A
Chain Length:162
Number of Molecules:1
Biological Source:MUS MUSCULUS, HOMO SAPIENS
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:ALPHA BETA BH3-PEPTIDE
Chain IDs:B (auth: D)
Chain Length:19
Number of Molecules:1
Biological Source:HOMO SAPIENS
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
B3A B ALA (3S)-3-AMINOBUTANOIC ACID
B3D B ASP 3-AMINOPENTANEDIOIC ACID
HR7 B ARG ?
Primary Citation
Structure-Guided Rational Design of Alpha/Beta-Peptide Foldamers with High Affinity for Bcl-2 Family Prosurvival Proteins.
Chembiochem 14 1564 ? (2013)
PMID: 23929624 DOI: 10.1002/CBIC.201300351

Abstact

We have used computational methods to improve the affinity of a foldamer ligand for its target protein. The effort began with a previously reported α/β-peptide based on the BH3 domain of the proapoptotic protein Puma; this foldamer binds tightly to Bcl-x(L) but weakly to Mcl-1. The crystal structure of the Puma-derived α/β-peptide complexed to Bcl-x(L) was used as the basis for computational design of variants intended to display improved binding to Mcl-1. Molecular modelling suggested modification of three α residues of the original α/β backbone. Individually, each substitution caused only a modest (4- to 15-fold) gain in affinity; however, together the three substitutions led to a 250-fold increase in binding to Mcl-1. These modifications had very little effect on affinity for Bcl-x(L). Crystal structures of a number of the new α/β-peptides bound to either Mcl-1 or Bcl-x(L) validated the selection of each substitution. Overall, our findings demonstrate that structure-guided rational design can be used to improve affinity and alter partner selectivity of peptidic ligands with unnatural backbones that bind to specific protein partners.
