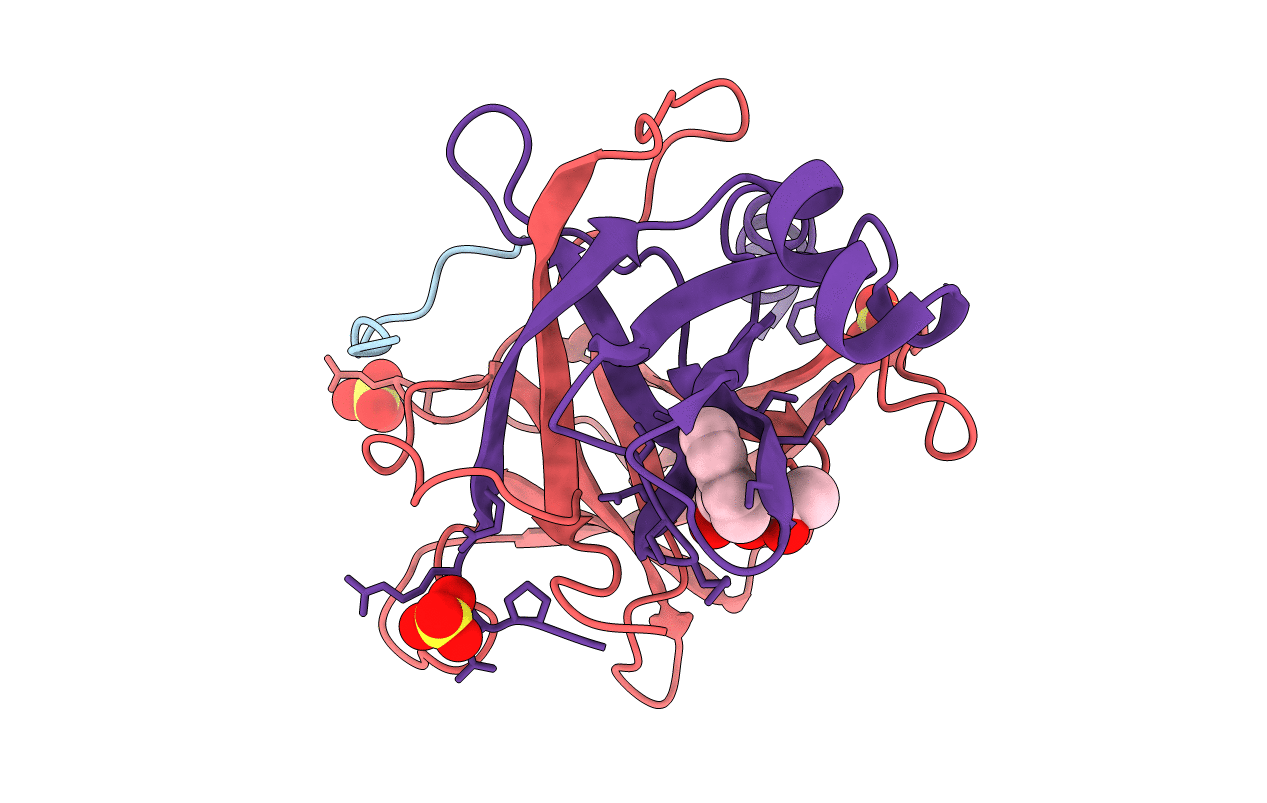

3VGC image
Deposition Date 1997-05-01
Release Date 1997-11-12
Last Version Date 2024-12-25
Entry Detail
PDB ID:
3VGC
Keywords:
Title:
GAMMA-CHYMOTRYPSIN L-NAPHTHYL-1-ACETAMIDO BORONIC ACID ACID INHIBITOR COMPLEX
Biological Source:
Source Organism:
Bos taurus (Taxon ID: 9913)
Method Details:
Experimental Method:
Resolution:
1.67 Å
R-Value Free:
0.24
R-Value Work:
0.20
R-Value Observed:
0.20
Space Group:
P 42 21 2
Macromolecular Entities
Polymer Type:polypeptide(L)
Molecule:GAMMA CHYMOTRYPSIN
Chain IDs:A
Chain Length:13
Number of Molecules:1
Biological Source:Bos taurus
Polymer Type:polypeptide(L)
Molecule:GAMMA CHYMOTRYPSIN
Chain IDs:B
Chain Length:131
Number of Molecules:1
Biological Source:Bos taurus
Polymer Type:polypeptide(L)
Molecule:GAMMA CHYMOTRYPSIN
Chain IDs:C
Chain Length:97
Number of Molecules:1
Biological Source:Bos taurus
Primary Citation
Differences in binding modes of enantiomers of 1-acetamido boronic acid based protease inhibitors: crystal structures of gamma-chymotrypsin and subtilisin Carlsberg complexes.
Biochemistry 37 451 462 (1998)
PMID: 9425066 DOI: 10.1021/bi971166o

Abstact

In order to probe the structural basis of stereoselectivity in the serine protease family, a series of enantiomeric boronic acids RCH2CH(NHCOCH3)B(OH)2 has been synthesized and kinetically characterized as transition-state analog inhibitors using alpha-chymotrypsin and subtilisin Carlsberg as model systems. When the R-substituent in this series was changed from a p-chlorophenyl to a 1-naphthyl group, alpha-chymotrypsin, but not subtilisin, reversed its usual preference for l-enantiomers and bound more tightly to the D-enantiomer [Martichonok, V., & Jones, J. B. (1996) J. Am. Chem. Soc. 118, 950-958]. The structural factors responsible for the differences in stereoselectivity between the two enzymes have been explored by X-ray crystallographic examination of subtilisin Carlsberg and gamma-chymotrypsin complexes of the L- and D-enantiomers of p-chlorophenyl and 1-naphthyl boronic acid derivatives. In both enzymes, the L-isomers of the inhibitors, which are more closely related to the natural L-amino acid substrates, form tetrahedral adducts, covalently linking the central boron atom and Ogamma of the catalytic serine. The d-isomers, however, differ in the way they interact with subtilisin or gamma-chymotrypsin. With subtilisin, both the D-p-chlorophenyl and D-1-naphthyl inhibitor complexes form covalent Ser Ogamma-to-boron bonds, but with gamma-chymotrypsin, the same inhibitors lead to novel tetrahedral adducts covalently linking both Ser195 Ogamma and His57 Nepsilon2 covalently via the boron atom.
