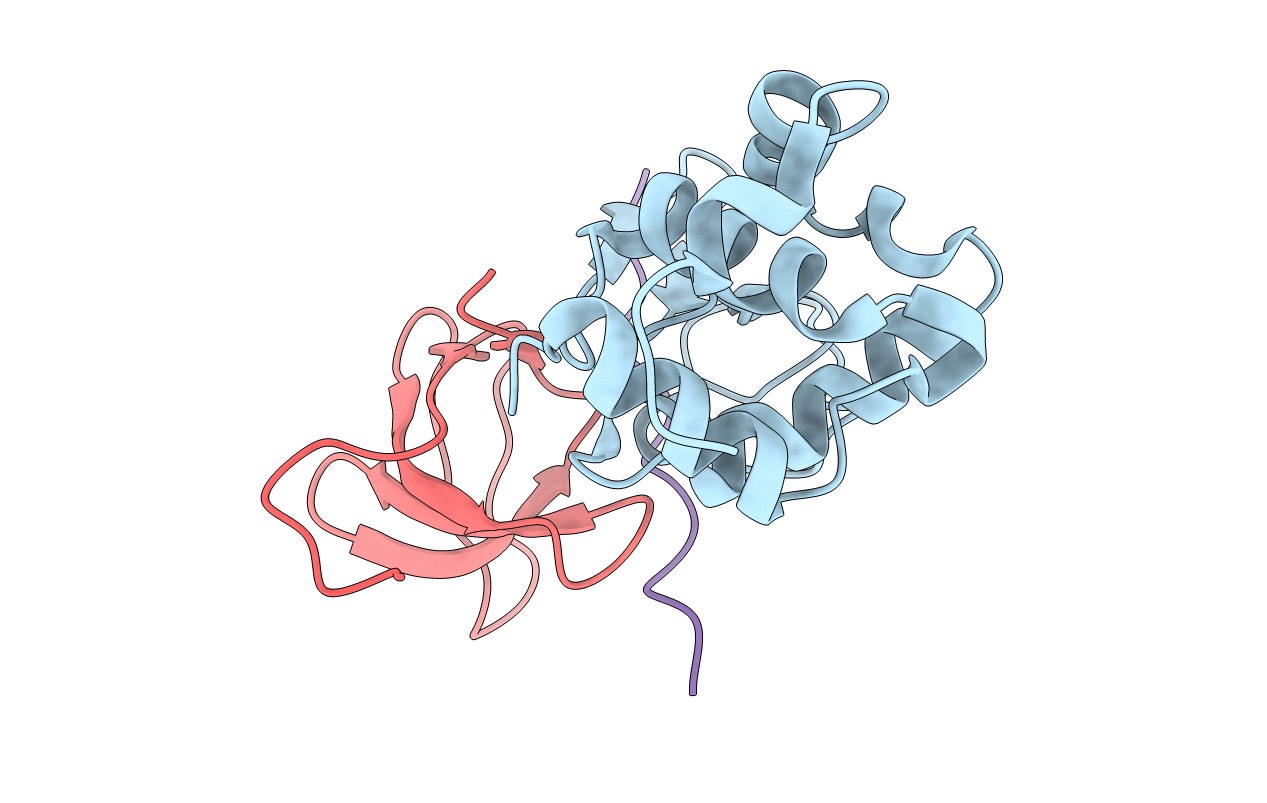

3ULR image
Deposition Date 2011-11-11
Release Date 2012-01-11
Last Version Date 2024-11-27
Entry Detail
PDB ID:
3ULR
Title:
Lysozyme contamination facilitates crystallization of a hetero-trimericCortactin:Arg:Lysozyme complex
Biological Source:
Source Organism:
Gallus gallus (Taxon ID: 9031)
Mus musculus (Taxon ID: 10090)
Homo sapiens (Taxon ID: 9606)
Method Details:
Experimental Method:
Resolution:
1.65 Å
R-Value Free:
0.22
R-Value Work:
0.18
R-Value Observed:
0.18
Space Group:
P 21 21 21
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Lysozyme C
Gene (Uniprot):LYZ
Chain IDs:A
Chain Length:129
Number of Molecules:1
Biological Source:Gallus gallus
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Src substrate cortactin
Gene (Uniprot):Cttn
Chain IDs:B
Chain Length:65
Number of Molecules:1
Biological Source:Mus musculus
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Abelson tyrosine-protein kinase 2
Gene (Uniprot):ABL2
Chain IDs:C
Chain Length:17
Number of Molecules:1
Biological Source:Homo sapiens
Primary Citation
Lysozyme contamination facilitates crystallization of a heterotrimeric cortactin-Arg-lysozyme complex.
Acta Crystallogr.,Sect.F 68 154 158 (2012)
PMID: 22297987 DOI: 10.1107/S1744309111056132

Abstact

Crystallization of contaminating proteins is a frequently encountered problem for macromolecular crystallographers. In this study, an attempt was made to obtain a binary cocrystal structure of the SH3 domain of cortactin and a 17-residue peptide from the Arg nonreceptor tyrosine kinase encompassing a PxxPxxPxxP (PxxP1) motif. However, cocrystals could only be obtained in the presence of trace amounts of a contaminating protein. A structure solution obtained by molecular replacement followed by ARP/wARP automatic model building allowed a 'sequence-by-crystallography' approach to discover that the contaminating protein was lysozyme. This 1.65 Å resolution crystal structure determination of a 1:1:1 heterotrimeric complex of Arg, cortactin and lysozyme thus provides an unusual `caveat emptor' warning of the dangers that underpurified proteins harbor for macromolecular crystallographers.
