ISDA: 3TYY

Deposition Date 2011-09-26

Release Date 2011-10-05

Last Version Date 2024-11-06

Entry Detail

PDB ID:

3TYY

Keywords:

STRUCTURAL PROTEIN

Title:

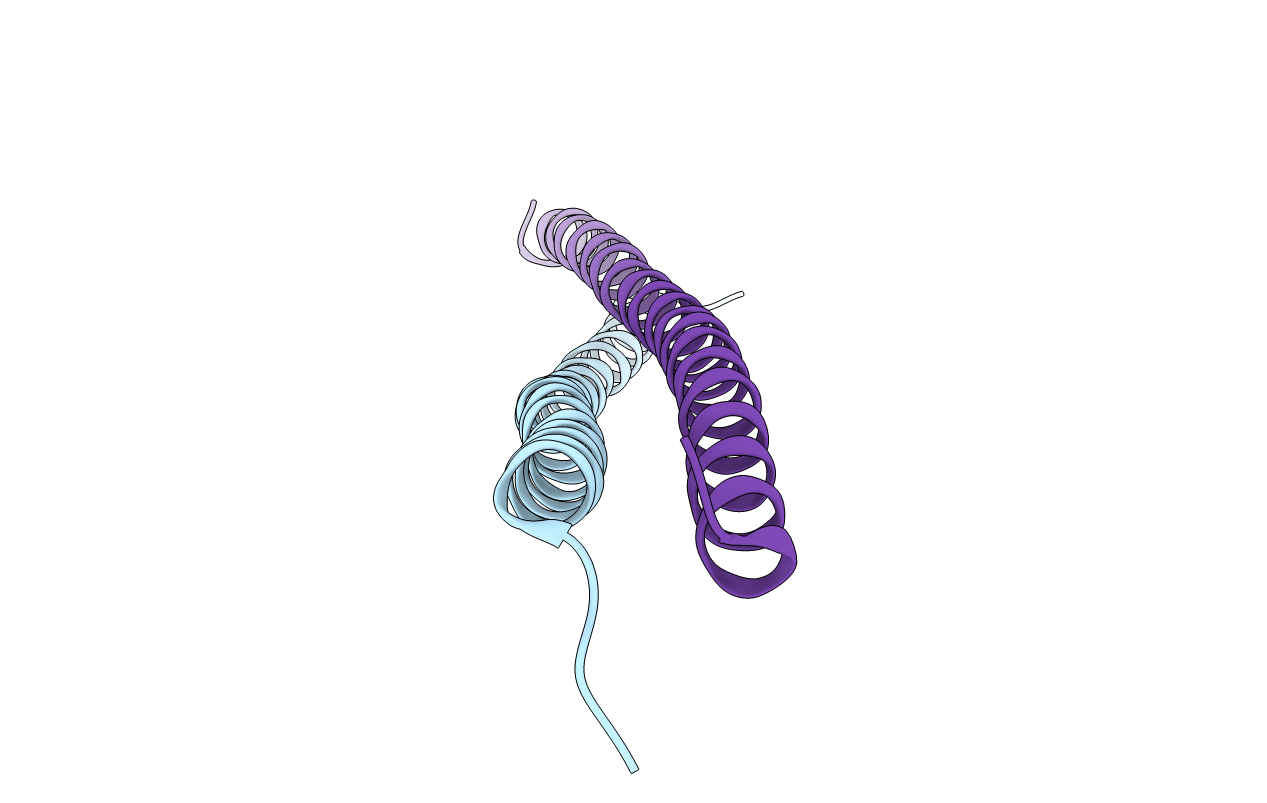

Crystal Structure of Human Lamin-B1 Coil 2 Segment

Biological Source:

Source Organism(s):

Homo sapiens (Taxon ID: 9606)

Expression System(s):

Escherichia coli

Method Details:

Experimental Method:

X-RAY DIFFRACTION

Resolution:

2.40 Å

R-Value Free:

0.26

R-Value Work:

0.23

R-Value Observed:

0.23

Space Group:

P 32 2 1

Download Validation Report

Macromolecular Entities

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:Lamin-B1
Gene (Uniprot):LMNB1
Chain IDs:A, B
Chain Length:95
Number of Molecules:2
Biological Source:Homo sapiens

UniProt ID:P20700

Primary Citation

Crystal structures of the coil 2B fragment and the globular tail domain of human lamin B1.

Ruan, J, Xu, C, Bian, C, Lam, R, Wang, J.P, Kania, J, Min, J, Zang, J.Show

Febs Lett. 586 314 318 (2012)

PMID: 22265972 DOI: 10.1016/j.febslet.2012.01.007

Abstact

We present here the crystal structures of human lamin B1 globular tail domain and coiled 2B domain, which adopt similar folds to Ig-like domain and coiled-coil domain of lamin A, respectively. Despite the overall similarity, we found an extra intermolecular disulfide bond in the lamin B1 coil 2B domain, which does not exist in lamin A/C. In addition, the structural analysis indicates that interactions at the lamin B1 homodimer interface are quite different from those of lamin A/C. Thus our research not only reveals the diversely formed homodimers among lamin family members, but also sheds light on understanding the important roles of lamin B1 in forming the nuclear lamina matrix.
