3PV6 image
Deposition Date 2010-12-06
Release Date 2011-03-16
Last Version Date 2024-11-27
Entry Detail
PDB ID:
3PV6
Keywords:
IMMUNE SYSTEM
Title:

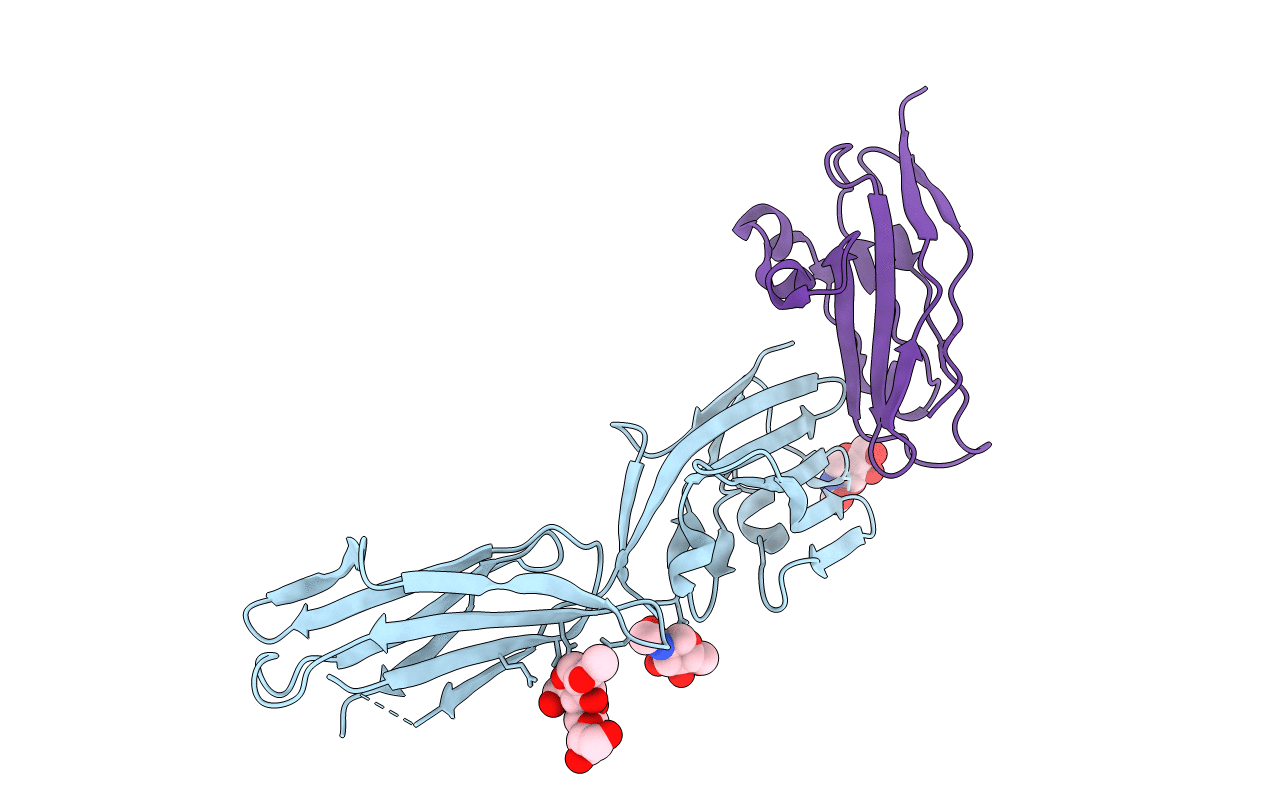

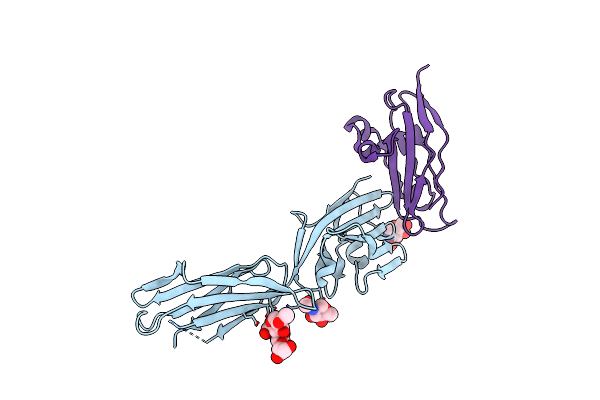

Crystal structure of NKp30 bound to its ligand B7-H6
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Spodoptera frugiperda, Escherichia coli
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
2.30 Å
R-Value Free:
0.28
R-Value Work:
0.23
Space Group:
P 21 21 21
3PV6 validation report
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Ig-like domain-containing protein DKFZp686O24166/DKFZp686I21167
Gene (Uniprot):NCR3LG1
Chain IDs:A
Chain Length:248
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:Q68D85 Pfam ID:PF07654
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Natural cytotoxicity triggering receptor 3
Gene (Uniprot):NCR3
Chain IDs:B
Chain Length:117
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:O14931 Pfam ID:PF07686
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
ASN A ASN GLYCOSYLATION SITE
Ligand Molecules
NAG
Primary Citation
Structure of the activating natural killer cell receptor NKp30 bound to its ligand B7-H6 reveals basis for tumor cell recognition in humans
to be published ? ? ? (?)
Primary Citation of related structures
3PV7
