3NO7 image
Deposition Date 2010-06-24
Release Date 2010-12-22
Last Version Date 2023-12-27
Entry Detail
PDB ID:
3NO7
Title:

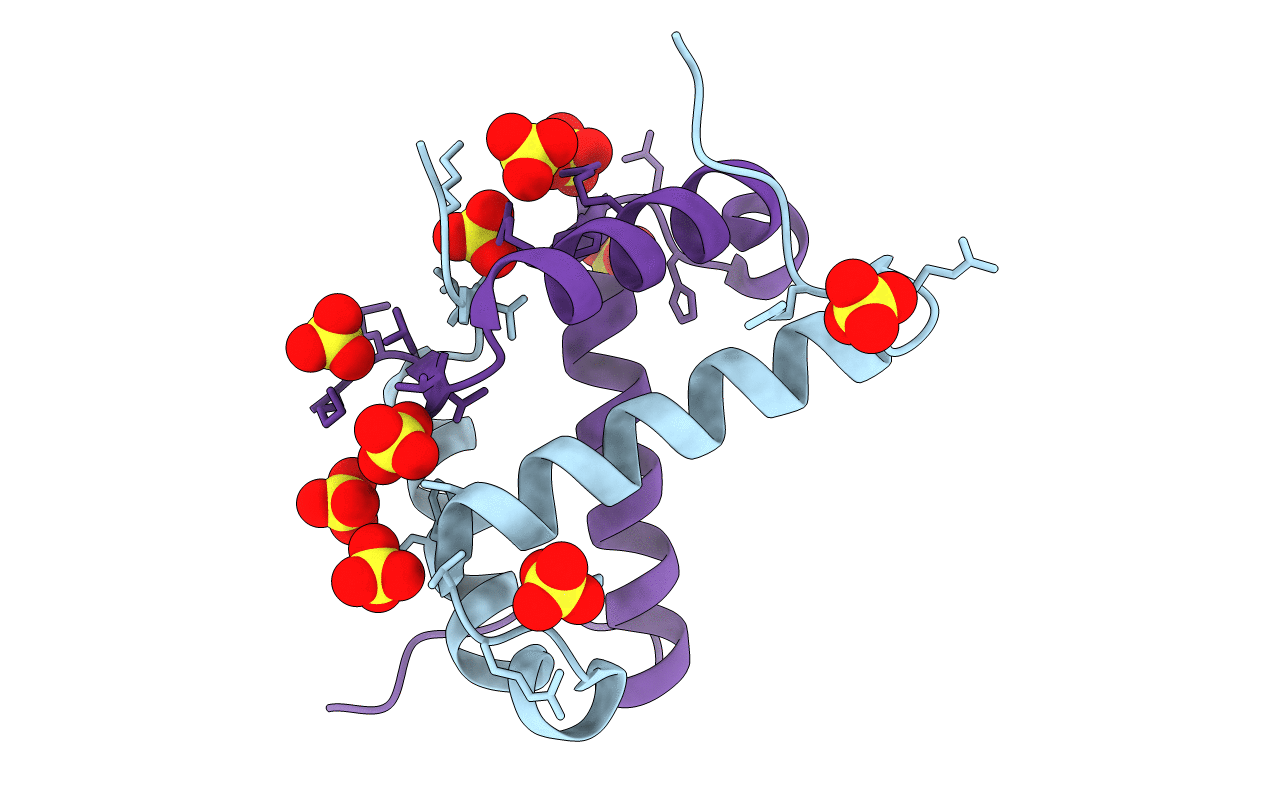

Crystal structure of the centromere-binding protein ParB from plasmid pCXC100
Biological Source:
Source Organism:
Host Organism:
Method Details:
Experimental Method:
Resolution:
1.40 Å
R-Value Free:
0.21
R-Value Work:
0.19
R-Value Observed:
0.19
Space Group:
P 32 2 1
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Putative plasmid related protein
Chain IDs:A, B
Chain Length:80
Number of Molecules:2
Biological Source:Leifsonia xyli subsp. cynodontis
Ligand Molecules
Primary Citation
Crystal structure and centromere binding of the plasmid segregation protein ParB from pCXC100
Nucleic Acids Res. 39 2954 2968 (2011)
PMID: 21123191 DOI: 10.1093/nar/gkq915

Abstact

Plasmid pCXC100 from the Gram-positive bacterium Leifsonia xyli subsp. cynodontis uses a type Ib partition system that includes a centromere region, a Walker-type ATPase ParA and a centromere-binding protein ParB for stable segregation. However, ParB shows no detectable sequence homology to any DNA-binding motif. Here, we study the ParB centromere interaction by structural and biochemical approaches. The crystal structure of the C-terminal DNA-binding domain of ParB at 1.4 Å resolution reveals a dimeric ribbon-helix-helix (RHH) motif, supporting the prevalence of RHH motif in centromere binding. Using hydroxyl radical footprinting and quantitative binding assays, we show that the centromere core comprises nine uninterrupted 9-nt direct repeats that can be successively bound by ParB dimers in a cooperative manner. However, the interaction of ParB with a single subsite requires 18 base pairs covering one immediate repeat as well as two halves of flanking repeats. Through mutagenesis, sequence specificity was determined for each position of an 18-bp subsite. These data suggest an unique centromere recognition mechanism by which the repeat sequence is jointly specified by adjacent ParB dimers bound to an overlapped region.
