Entry Detail
PDB ID:
3H2T
Keywords:
Title:

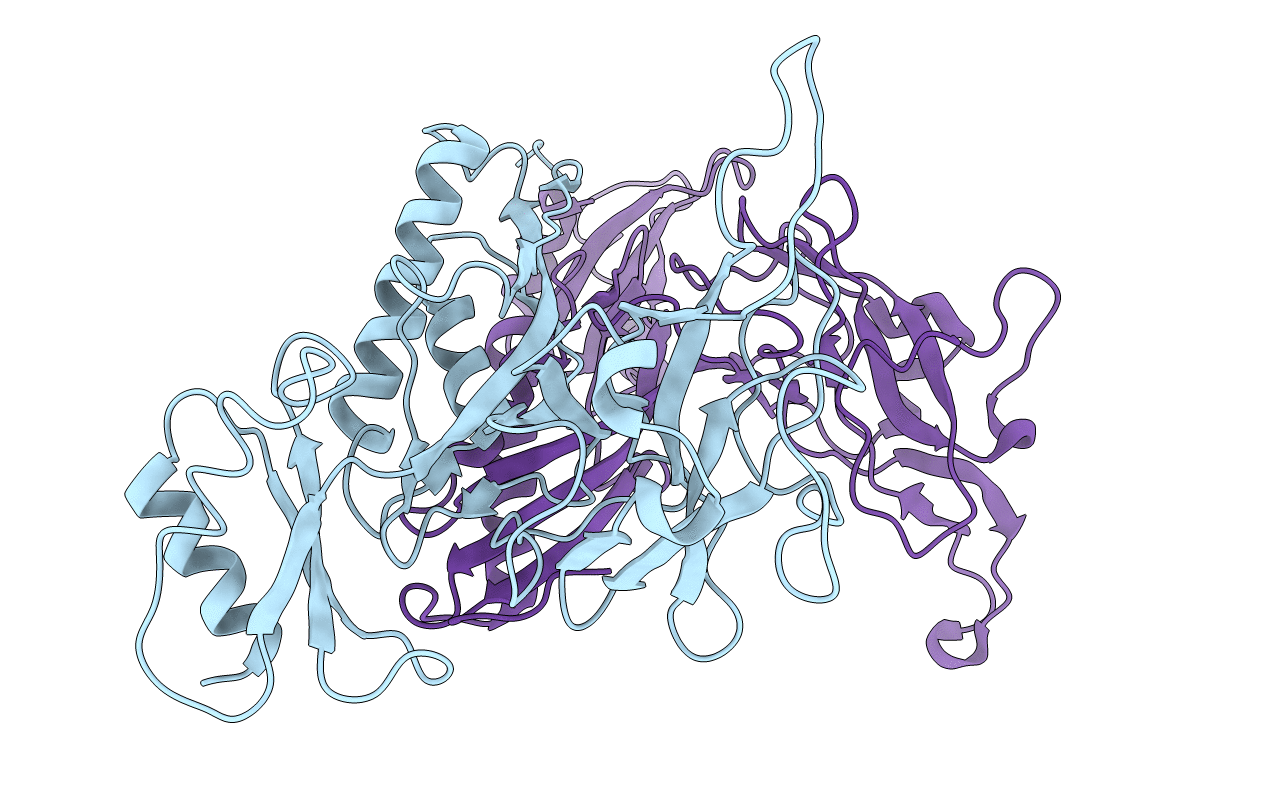

Crystal structure of gene product 6, baseplate protein of bacteriophage T4
Biological Source:
Source Organism:
Host Organism:
PDB Version:
Deposition Date:
2009-04-14
Release Date:
2009-05-19
Method Details:
Experimental Method:
Resolution:
3.20 Å
R-Value Free:
0.32
R-Value Work:
0.22
R-Value Observed:
0.23
Space Group:
P 21 21 21
Macromolecular Entities
Polymer Type:polypeptide(L)
Description:Baseplate structural protein Gp6
Chain IDs:A, B
Chain Length:335
Number of Molecules:2
Biological Source:Enterobacteria phage T4
Primary Citation
The structure of gene product 6 of bacteriophage t4, the hinge-pin of the baseplate.
Structure 17 800 808 (2009)
PMID: 19523898 DOI: 10.1016/j.str.2009.04.005

Abstact

The baseplate of bacteriophage T4 is a multicomponent protein complex, which controls phage attachment to the host. It assembles from six wedges and a central hub. During infection the baseplate undergoes a large conformational change from a dome-shaped to a flat, star-shaped structure. We report the crystal structure of the C-terminal half of gene product (gp) 6 and investigate its motion with respect to the other proteins during the baseplate rearrangement. Six gp6 dimers interdigitate, forming a ring that maintains the integrity of the baseplate in both conformations. One baseplate wedge contains an N-terminal dimer of gp6, whereas neighboring wedges are tied together through the C-terminal dimer of gp6. The dimeric interactions are preserved throughout the rearrangement of the baseplate. However, the hinge angle between the N- and C-terminal parts of gp6 changes by approximately 15 degrees , accounting for a 10 A radial increase in the diameter of the gp6 ring.
