3E3D image
Deposition Date 2008-08-07
Release Date 2008-10-28
Last Version Date 2024-10-09
Entry Detail
PDB ID:
3E3D
Keywords:
Title:

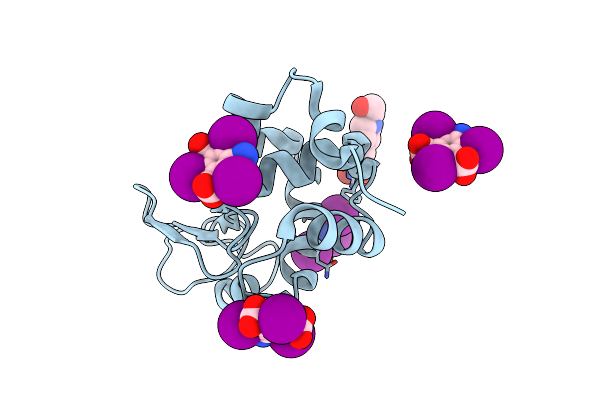

Structure of hen egg white lysozyme with the magic triangle I3C
Biological Source:
Source Organism:
Gallus gallus (Taxon ID: 9031)
Method Details:
Experimental Method:
Resolution:
1.55 Å
R-Value Free:
0.22
R-Value Work:
0.17
R-Value Observed:
0.17
Space Group:
P 43 21 2
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Lysozyme C
Gene (Uniprot):LYZ
Chain IDs:A
Chain Length:129
Number of Molecules:1
Biological Source:Gallus gallus
Primary Citation
A magic triangle for experimental phasing of macromolecules
Acta Crystallogr.,Sect.D 64 1179 1182 (2008)
PMID: 19020357 DOI: 10.1107/S0907444908030266

Abstact

Obtaining phase information for the solution of macromolecular structures is still one of the bottlenecks in X-ray crystallography. 5-Amino-2,4,6-triiodoisophthalic acid (I3C), in which three covalently bound iodines form an equilateral triangle, was incorporated into proteins in order to obtain phases by single-wavelength anomalous dispersion (SAD). An improved binding capability compared with simple heavy-metal ions, ready availability, improved recognition of potential heavy-atom sites and low toxicity make I3C particularly suitable for experimental phasing.
