3CX7 image
Deposition Date 2008-04-23
Release Date 2008-10-28
Last Version Date 2023-08-30
Entry Detail
PDB ID:
3CX7
Title:

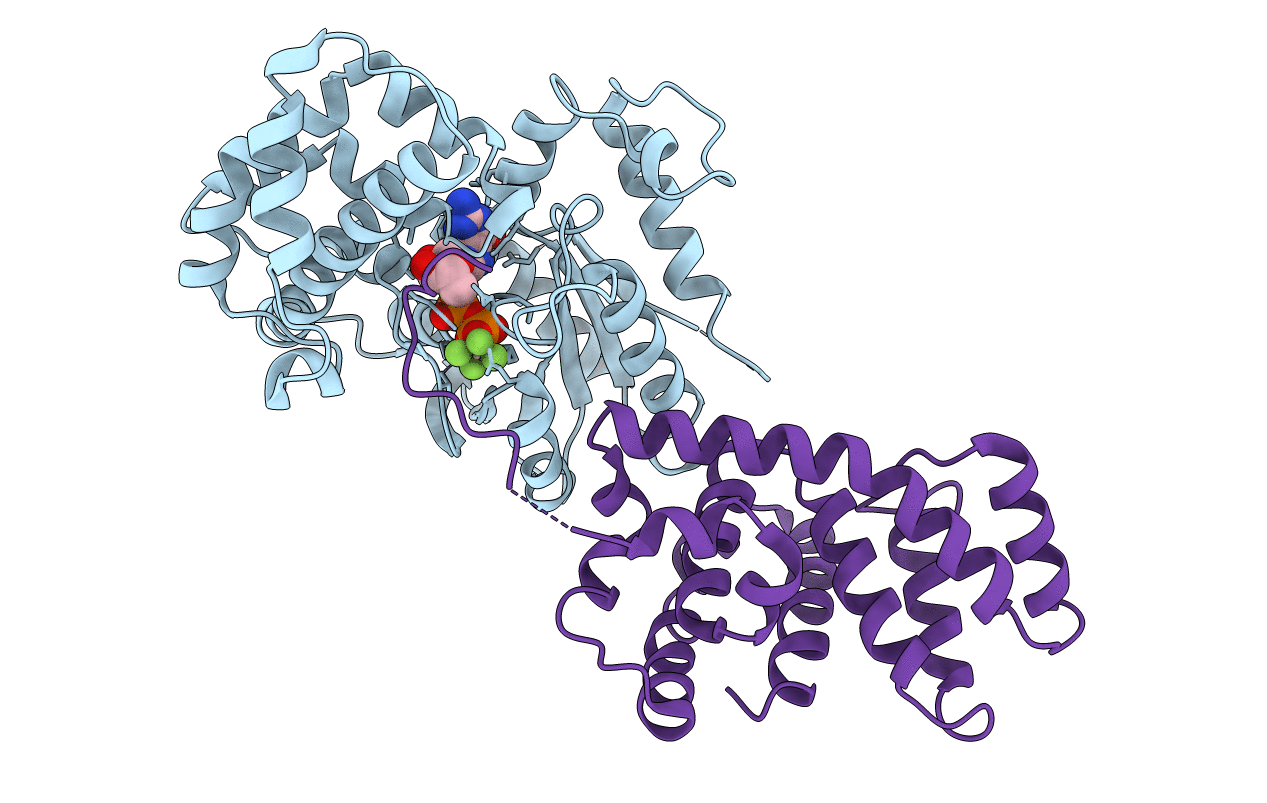

Crystal Structure of PDZRhoGEF rgRGS Domain in a Complex with Galpha-13 Bound to GDP-AlF4
Biological Source:
Source Organism:
Mus musculus (Taxon ID: )
Host Organism:
Method Details:
Experimental Method:
Resolution:
2.25 Å
R-Value Free:
0.26
R-Value Work:
0.22
R-Value Observed:
0.26
Space Group:
P 21 21 21
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Guanine Nucleotide-Binding Protein Galpha 13
Gene (Uniprot):Gna13
Chain IDs:A
Chain Length:338
Number of Molecules:1
Biological Source:Mus musculus
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Glutamate Transporter Associated Protein 48
Gene (Uniprot):Arhgef11
Chain IDs:B
Chain Length:203
Number of Molecules:1
Biological Source:Rattus norvegicus
Primary Citation
Recognition of the Activated States of Galpha13 by the rgRGS Domain of PDZRhoGEF.
Structure 16 1532 1543 (2008)
PMID: 18940608 DOI: 10.1016/j.str.2008.07.009

Abstact

G12 class heterotrimeric G proteins stimulate RhoA activation by RGS-RhoGEFs. However, p115RhoGEF is a GTPase Activating Protein (GAP) toward Galpha13, whereas PDZRhoGEF is not. We have characterized the interaction between the PDZRhoGEF rgRGS domain (PRG-rgRGS) and the alpha subunit of G13 and have determined crystal structures of their complexes in both the inactive state bound to GDP and the active states bound to GDP*AlF (transition state) and GTPgammaS (Michaelis complex). PRG-rgRGS interacts extensively with the helical domain and the effector-binding sites on Galpha13 through contacts that are largely conserved in all three nucleotide-bound states, although PRG-rgRGS has highest affinity to the Michaelis complex. An acidic motif in the N terminus of PRG-rgRGS occupies the GAP binding site of Galpha13 and is flexible in the GDP*AlF complex but well ordered in the GTPgammaS complex. Replacement of key residues in this motif with their counterparts in p115RhoGEF confers GAP activity.
