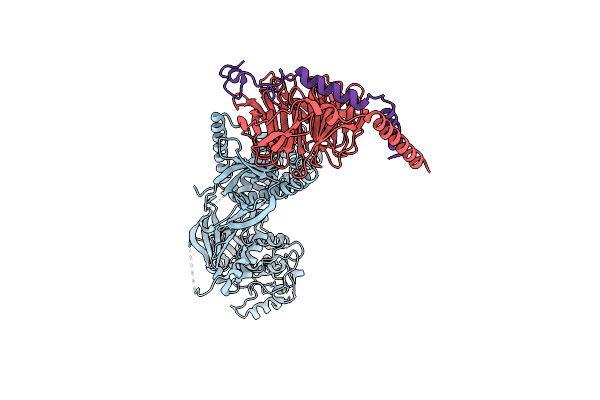

3CIK image
Deposition Date 2008-03-11
Release Date 2009-02-17
Last Version Date 2025-03-26
Entry Detail
PDB ID:
3CIK
Keywords:
Transferase/Signaling protein
Title:
Human GRK2 in Complex with Gbetagamma subunits
Biological Source:
Source Organism:
Homo sapiens (Taxon ID: 9606)
Bos taurus (Taxon ID: 9913)
Host Organism:
Spodoptera frugiperda
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
2.75 Å
R-Value Free:
0.26
R-Value Work:
0.20
R-Value Observed:
0.20
Space Group:
C 1 2 1
3CIK validation report
Macromolecular Entities
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Beta-adrenergic receptor kinase 1
Gene (Uniprot):GRK2
Chain IDs:A
Chain Length:689
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:P25098 Pfam ID:PF00615, PF00069, PF00169 EC:2.7.11.15
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Gene (Uniprot):GNB1
Chain IDs:B
Chain Length:340
Number of Molecules:1
Biological Source:Bos taurus
UniProt ID:P62871 Pfam ID:PF00400
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Gene (Uniprot):GNG2
Chain IDs:C (auth: G)
Chain Length:74
Number of Molecules:1
Biological Source:Bos taurus
UniProt ID:P63212 Pfam ID:PF00631
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
CMT C CYS O-METHYLCYSTEINE
Ligand Molecules
MG
Primary Citation
Structure of human G protein-coupled receptor kinase 2 in complex with the kinase inhibitor balanol.
J.Med.Chem. 53 1867 1870 (2010)
PMID: 20128603 DOI: 10.1021/jm9017515

Abstact

G protein-coupled receptor kinase 2 (GRK2) is a pharmaceutical target for the treatment of cardiovascular diseases such as congestive heart failure, myocardial infarction, and hypertension. To better understand how nanomolar inhibition and selectivity for GRK2 might be achieved, we have determined crystal structures of human GRK2 in complex with Gbetagamma in the presence and absence of the AGC kinase inhibitor balanol. The selectivity of balanol among human GRKs is assessed.

Legend

Protein

Chemical

Disease

Primary Citation of related structures
1OMW
1BX6
3CIL
