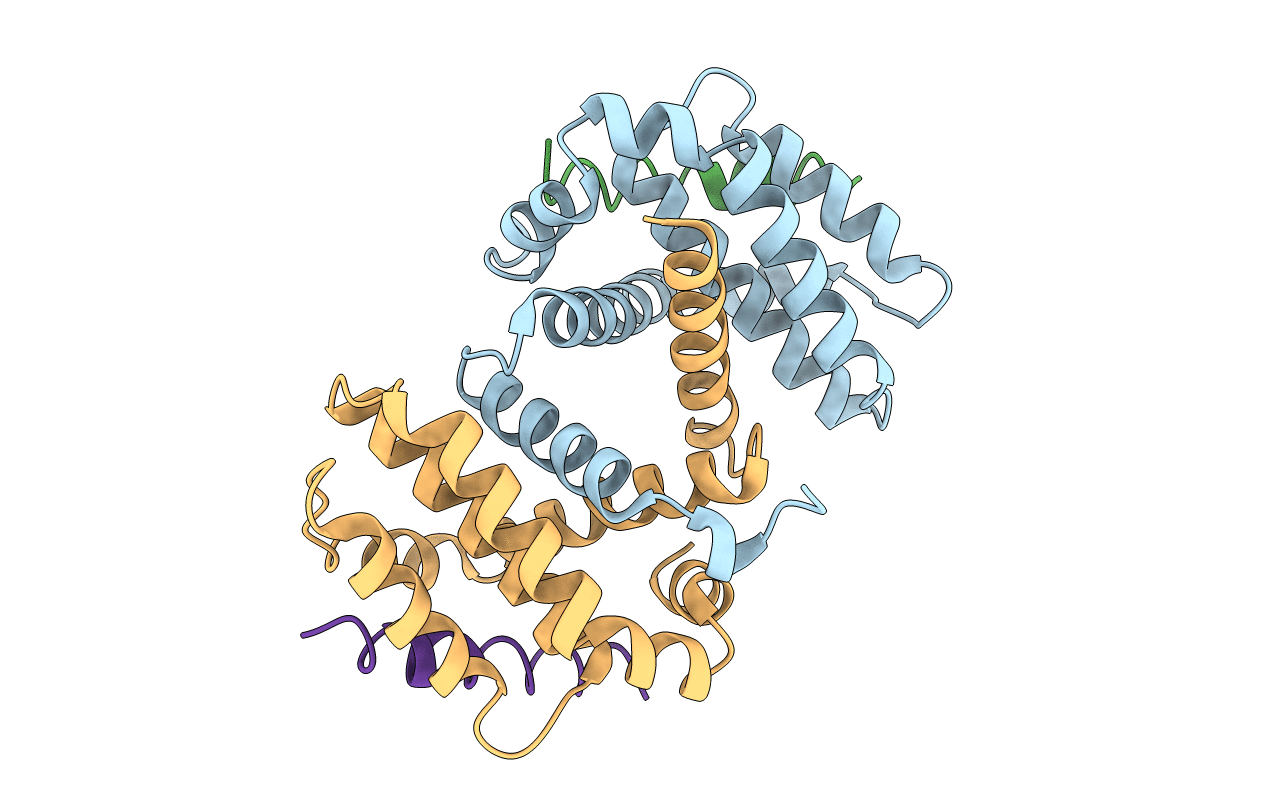

2YJ1 image
Deposition Date 2011-05-18
Release Date 2011-10-12
Last Version Date 2024-05-15
Entry Detail
PDB ID:
2YJ1
Keywords:
Title:
Puma BH3 foldamer in complex with Bcl-xL
Biological Source:
Source Organism:
Host Organism:
Method Details:
Experimental Method:
Resolution:
2.24 Å
R-Value Free:
0.25
R-Value Work:
0.19
R-Value Observed:
0.19
Space Group:
P 21 21 21
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:BCL-2-LIKE PROTEIN 1
Gene (Uniprot):BCL2L1
Chain IDs:A, C
Chain Length:158
Number of Molecules:2
Biological Source:HOMO SAPIENS
Polymer Type:polypeptide(L)
Molecule:ALPHA-BETA-PUMA BH3 FOLDAMER
Chain IDs:B, D
Chain Length:23
Number of Molecules:2
Biological Source:SYNTHETIC CONSTRUCT
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
B3A B ALA (3S)-3-AMINOBUTANOIC ACID
B3D B ASP 3-AMINOPENTANEDIOIC ACID
B3E B GLU (3S)-3-AMINOHEXANEDIOIC ACID
HR7 B ARG ?
HT7 B TRP ?
Primary Citation
Structural Basis of Bcl-Xl Recognition by a Bh3-Mimetic Alpha-Beta-Peptide Generated Via Sequence-Based Design
Chembiochem 12 2025 ? (2011)
PMID: 21744457 DOI: 10.1002/CBIC.201100314

Abstact

The crystal structure of a complex between the prosurvival protein Bcl-x(L) and an α/β-peptide 21-mer is described. The α/β-peptide contains six β-amino acid residues distributed periodically throughout the sequence and adopts an α-helix-like conformation that mimics the bioactive shape of the Puma BH3 domain. The α/β-peptide forms all of the noncovalent contacts that have previously been identified as necessary for recognition of the prosurvival protein by an authentic BH3 domain. Comparison of our α/β-peptide:Bcl-x(L) structure with structures of complexes between native BH3 domains and Bcl-2 family proteins reveals how subtle adjustments, including variations in helix radius and helix bowing, allow the α/β-peptide to engage Bcl-x(L) with high affinity. Geometric comparisons of the BH3-mimetic α/β-peptide with α/β-peptides in helix-bundle assemblies provide insight on the conformational plasticity of backbones that contain combinations of α- and β-amino acid residues. The BH3-mimetic α/β-peptide displays prosurvival protein-binding preferences distinct from those of Puma BH3 itself, even though these two oligomers have identical side-chain sequences. Our results suggest origins for this backbone-dependent change in selectivity.
