2Y0G image
Deposition Date 2010-12-02
Release Date 2011-04-27
Last Version Date 2024-11-06
Entry Detail
PDB ID:
2Y0G
Title:

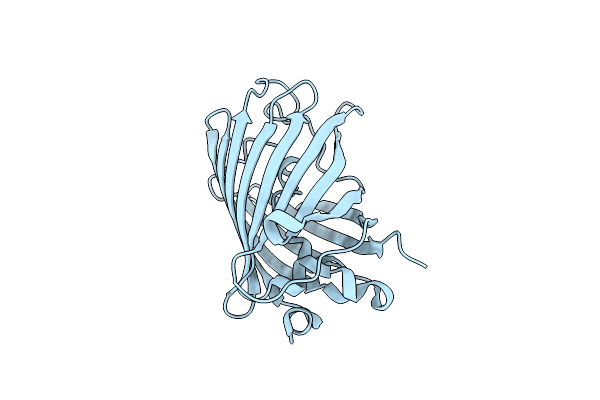

X-ray structure of Enhanced Green Fluorescent Protein (EGFP)
Biological Source:
Source Organism:
Host Organism:
Method Details:
Experimental Method:
Resolution:
1.50 Å
R-Value Free:
0.18
R-Value Work:
0.13
R-Value Observed:
0.13
Space Group:
P 21 21 21
Macromolecular Entities
Polymer Type:polypeptide(L)
Molecule:GREEN FLUORESCENT PROTEIN
Gene (Uniprot):GFP
Mutations:YES
Chain IDs:A
Chain Length:252
Number of Molecules:1
Biological Source:AEQUOREA VICTORIA
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
CRO A THR ?
Primary Citation
Stabilizing Role of Glutamic Acid 222 in the Structure of Enhanced Green Fluorescent Protein.
J.Struct.Biol. 174 385 ? (2011)
PMID: 21335090 DOI: 10.1016/J.JSB.2011.02.004

Abstact

Enhanced Green Fluorescent Protein (EGFP) is a variant of wild-type Green Fluorescent Protein from the jellyfish Aequorea victoria, whose mutations S65T and F64L increase brightness and folding efficiency. EGFP is extensively used in cell biology and biochemistry as a colocalization or expression reporter. Surprisingly, the structure of this very popular protein has not been determined yet. We report here its crystallographic structure at 1.5Å resolution which shows significant differences in the vicinity of residue 64 and of the chromophore. In particular, two conformations are observed for the key residue glutamic acid 222, in apparent contradiction with the single fluorescence lifetime of the protein. We then show that X-ray induced decarboxylation of Glu222 during diffraction data collection results in the disruption of a hydrogen-bond network near the chromophore. Using single-crystal microspectrophotometry, we demonstrate that this correlates with a significant loss of the fluorescence properties. We thus propose a mechanism of bleaching of the protein at low temperature. Taken together, these two sets of results highlight the stabilizing role of Glu222 to the chromophore cavity of EGFP.
