2XOK image
Deposition Date 2010-08-18
Release Date 2010-09-22
Last Version Date 2023-12-20
Entry Detail
PDB ID:
2XOK
Keywords:
Title:

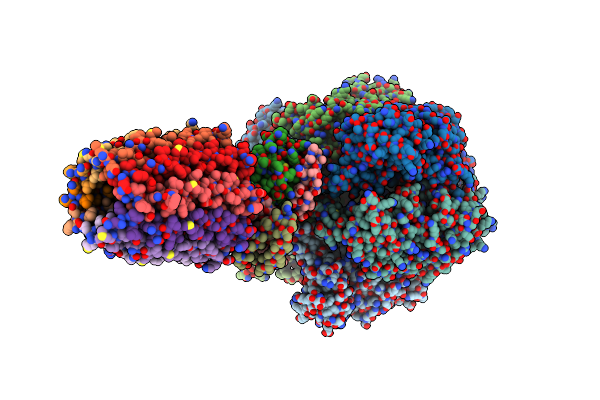

Refined structure of yeast F1c10 ATPase complex to 3 A resolution
Biological Source:
Source Organism:
Method Details:
Experimental Method:
Resolution:
3.01 Å
R-Value Free:
0.25
R-Value Work:
0.20
R-Value Observed:
0.21
Space Group:
P 1 21 1
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:ATP SYNTHASE SUBUNIT ALPHA, MITOCHONDRIAL
Gene (Uniprot):ATP1
Chain IDs:A, B, C
Chain Length:545
Number of Molecules:3
Biological Source:SACCHAROMYCES CEREVISIAE
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:ATP SYNTHASE SUBUNIT BETA, MITOCHONDRIAL
Gene (Uniprot):ATP2
Chain IDs:D, E, F
Chain Length:511
Number of Molecules:3
Biological Source:SACCHAROMYCES CEREVISIAE
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:ATP SYNTHASE SUBUNIT GAMMA, MITOCHONDRIAL
Gene (Uniprot):ATP3
Chain IDs:G
Chain Length:311
Number of Molecules:1
Biological Source:SACCHAROMYCES CEREVISIAE
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:ATP SYNTHASE
Gene (Uniprot):ATP16
Chain IDs:H
Chain Length:160
Number of Molecules:1
Biological Source:SACCHAROMYCES CEREVISIAE
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:ATP SYNTHASE CATALYTIC SECTOR F1 EPSILON SUBUNIT
Chain IDs:I
Chain Length:61
Number of Molecules:1
Biological Source:SACCHAROMYCES CEREVISIAE
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:ATP SYNTHASE SUBUNIT 9, MITOCHONDRIAL
Gene (Uniprot):OLI1
Chain IDs:J (auth: K), K (auth: L), L (auth: M), M (auth: N), N (auth: O), O (auth: P), P (auth: Q), Q (auth: R), R (auth: S), S (auth: T)
Chain Length:76
Number of Molecules:10
Biological Source:SACCHAROMYCES CEREVISIAE
Primary Citation
Molecular architecture of the rotary motor in ATP synthase.
Science 286 1700 1705 (1999)
PMID: 10576729 DOI: 10.1126/science.286.5445.1700

Abstact

Adenosine triphosphate (ATP) synthase contains a rotary motor involved in biological energy conversion. Its membrane-embedded F0 sector has a rotation generator fueled by the proton-motive force, which provides the energy required for the synthesis of ATP by the F1 domain. An electron density map obtained from crystals of a subcomplex of yeast mitochondrial ATP synthase shows a ring of 10 c subunits. Each c subunit forms an alpha-helical hairpin. The interhelical loops of six to seven of the c subunits are in close contact with the gamma and delta subunits of the central stalk. The extensive contact between the c ring and the stalk suggests that they may rotate as an ensemble during catalysis.
