ISDA: 2WAH

Deposition Date 2009-02-06

Release Date 2009-03-10

Last Version Date 2024-11-13

Entry Detail

PDB ID:

2WAH

Keywords:

IMMUNE SYSTEM

Title:

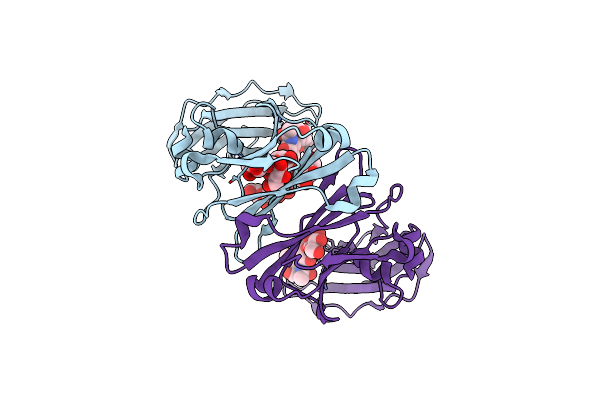

Crystal Structure of an IgG1 Fc Glycoform (Man9GlcNAc2)

Biological Source:

Source Organism:

Homo sapiens (Taxon ID: 9606)

Host Organism:

Homo sapiens

Method Details:

Experimental Method:

X-RAY DIFFRACTION

Resolution:

2.51 Å

R-Value Free:

0.26

R-Value Work:

0.21

R-Value Observed:

0.21

Space Group:

P 21 21 21

Download Validation Report

Macromolecular Entities

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:IG GAMMA-1 CHAIN C REGION
Gene (Uniprot):IGHG1
Mutagens:YES
Chain IDs:A, B
Chain Length:209
Number of Molecules:2
Biological Source:Homo sapiens

UniProt ID:P01857 Pfam ID:PF07654

Modified Residue

Compound ID	Chain ID	Parent Comp ID	Details	2D Image
ASN	A	ASN	GLYCOSYLATION SITE

Primary Citation

Carbohydrate and Domain Architecture of an Immature Antibody Glycoform Exhibiting Enhanced Effector Functions

Crispin, M, Bowden, T.A, Coles, C.H, Harlos, K, Aricescu, A.R, Harvey, D.J, Stuart, D.I, Jones, E.Y.Show

J.Mol.Biol. 387 1061 ? (2009)

PMID: 19236877 DOI: 10.1016/J.JMB.2009.02.033

Abstact

Antibodies contain a conserved glycosylation site that has emerged as a target for the modulation of antibody effector functions. The crystal structure of a biosynthetic intermediate of human IgG1, bearing immature oligomannose-type glycans and reported to display increased antibody-dependent cellular cytotoxicity, demonstrates that glycan engineering can bias the Fc to an open conformation primed for receptor binding.
