2W6R image
Deposition Date 2008-12-18
Release Date 2009-02-03
Last Version Date 2023-12-13
Entry Detail
PDB ID:
2W6R
Keywords:
Title:

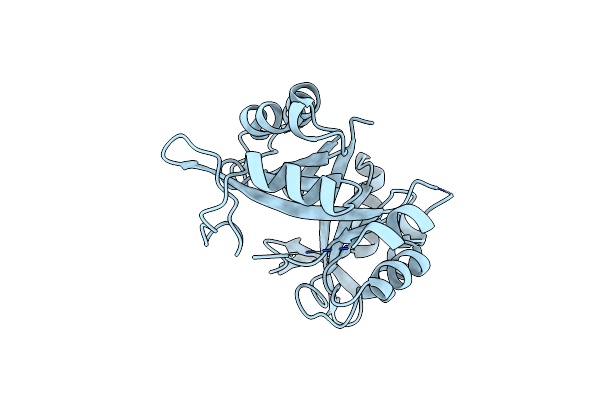

Crystal structure of an artificial (ba)8-barrel protein designed from identical half barrels
Biological Source:
Source Organism:
Host Organism:
Method Details:
Experimental Method:
Resolution:
2.10 Å
R-Value Free:
0.28
R-Value Work:
0.24
R-Value Observed:
0.24
Space Group:
P 31 2 1
Macromolecular Entities
Polymer Type:polypeptide(L)
Molecule:IMIDAZOLE GLYCEROL PHOSPHATE SYNTHASE SUBUNIT HISF
Gene (Uniprot):hisF
Chain IDs:A
Chain Length:266
Number of Molecules:1
Biological Source:THERMOTOGA MARITIMA
Primary Citation
High-Resolution Crystal Structure of an Artificial (Betaalpha)(8)-Barrel Protein Designed from Identical Half-Barrels.
Biochemistry 48 1145 ? (2009)
PMID: 19166324 DOI: 10.1021/BI802125B

Abstact

Ample evidence suggests that the ubiquitous (betaalpha)(8)-barrel enzyme fold has evolved by the duplication and fusion of an ancestral (betaalpha)(4)-half-barrel. To reconstruct this process in the laboratory with a model protein, we earlier fused two copies of the C-terminal half-barrel HisF-C of imidazole glycerol phosphate synthase (HisF) and stepwise stabilized the resulting HisF-CC construct. We now further increased its stability and solubility by introducing two additional amino acid exchanges, which allowed us to crystallize the resulting artificial (betaalpha)(8)-barrel protein HisF-C***C. The analysis of its X-ray structure at 2.1 A resolution reveals a striking similarity to wild-type HisF, helps us to understand its improved stability, and provides further insights into the evolution of (betaalpha)(8)-barrel proteins.
