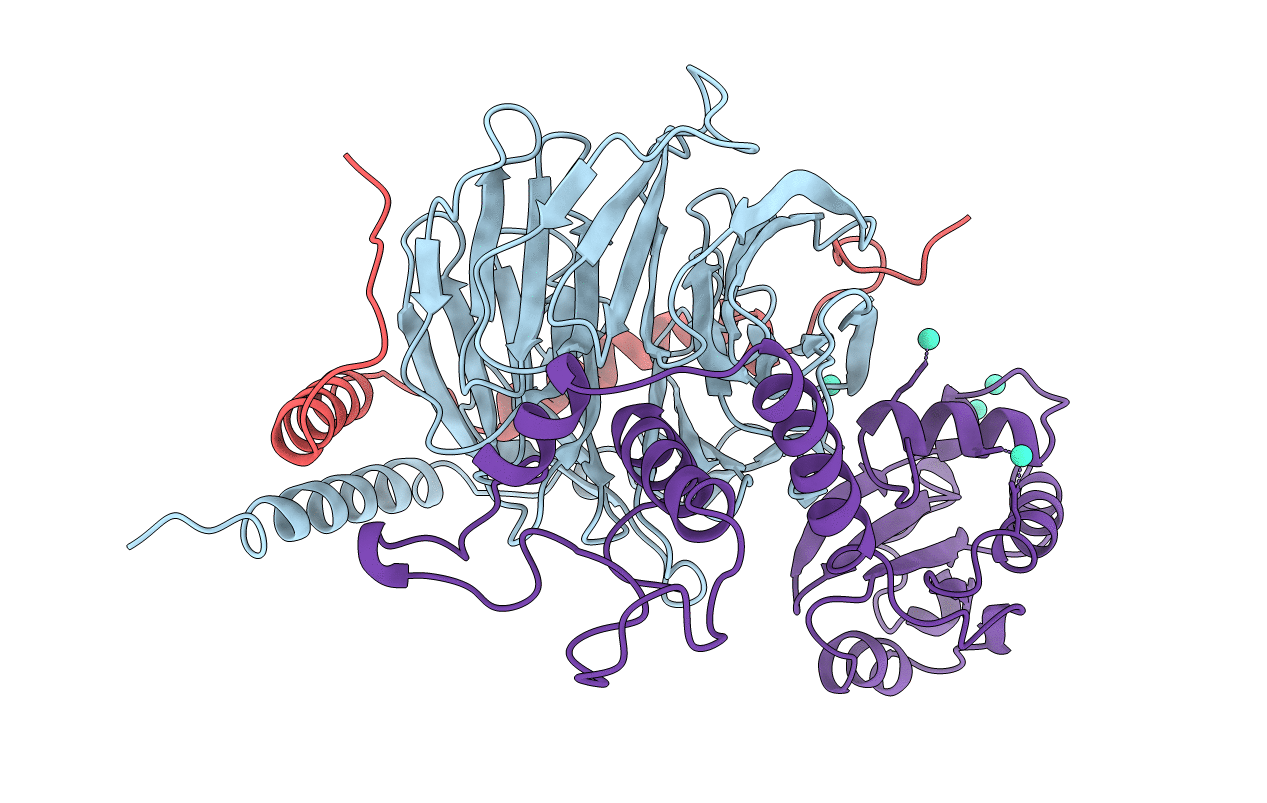

2TRC image
Deposition Date 1997-01-06
Release Date 1997-06-05
Last Version Date 2024-11-20
Entry Detail
PDB ID:
2TRC
Title:
PHOSDUCIN/TRANSDUCIN BETA-GAMMA COMPLEX
Biological Source:
Source Organism:
Rattus norvegicus (Taxon ID: 10116)
Bos taurus (Taxon ID: 9913)
Method Details:
Experimental Method:
Resolution:
2.40 Å
R-Value Free:
0.27
R-Value Work:
0.19
R-Value Observed:
0.19
Space Group:
P 21 21 21
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:TRANSDUCIN
Gene (Uniprot):GNB1
Chain IDs:A (auth: B)
Chain Length:340
Number of Molecules:1
Biological Source:Bos taurus
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:TRANSDUCIN
Gene (Uniprot):GNGT1
Chain IDs:B (auth: G)
Chain Length:68
Number of Molecules:1
Biological Source:Bos taurus
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:PHOSDUCIN
Gene (Uniprot):Pdc
Chain IDs:C (auth: P)
Chain Length:217
Number of Molecules:1
Biological Source:Rattus norvegicus
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
MSE C MET SELENOMETHIONINE
Ligand Molecules
Primary Citation
Crystal structure at 2.4 angstroms resolution of the complex of transducin betagamma and its regulator, phosducin.
Cell(Cambridge,Mass.) 87 577 588 (1996)
PMID: 8898209 DOI: 10.1016/S0092-8674(00)81376-8

Abstact

The crystal structure of transducin's betagamma subunits complexed with phosducin, which regulates Gtbetagamma activity, has been solved to 2.4 angstroms resolution. Phosducin has two domains that wrap around Gtbetagamma to form an extensive interface. The N-terminal domain binds loops on the "top" Gtbeta surface, overlapping the Gtalpha binding surface, explaining how phosducin blocks Gtbetagamma's interaction with Gtalpha. The C-terminal domain shows structural homology to thioredoxin and binds the outer strands of Gtbeta's seventh and first blades in a manner likely to disrupt Gtbetagamma's normal orientation relative to the membrane and receptor. Phosducin's Ser-73, which when phosphorylated inhibits phosducin's function, points away from Gtbetagamma, toward a large flexible loop. Thus phosphorylation is not likely to affect the interface directly, but rather indirectly through an induced conformational change.
