2POU image
Deposition Date 2007-04-27
Release Date 2007-07-24
Last Version Date 2023-08-30
Entry Detail
PDB ID:
2POU
Keywords:
Title:

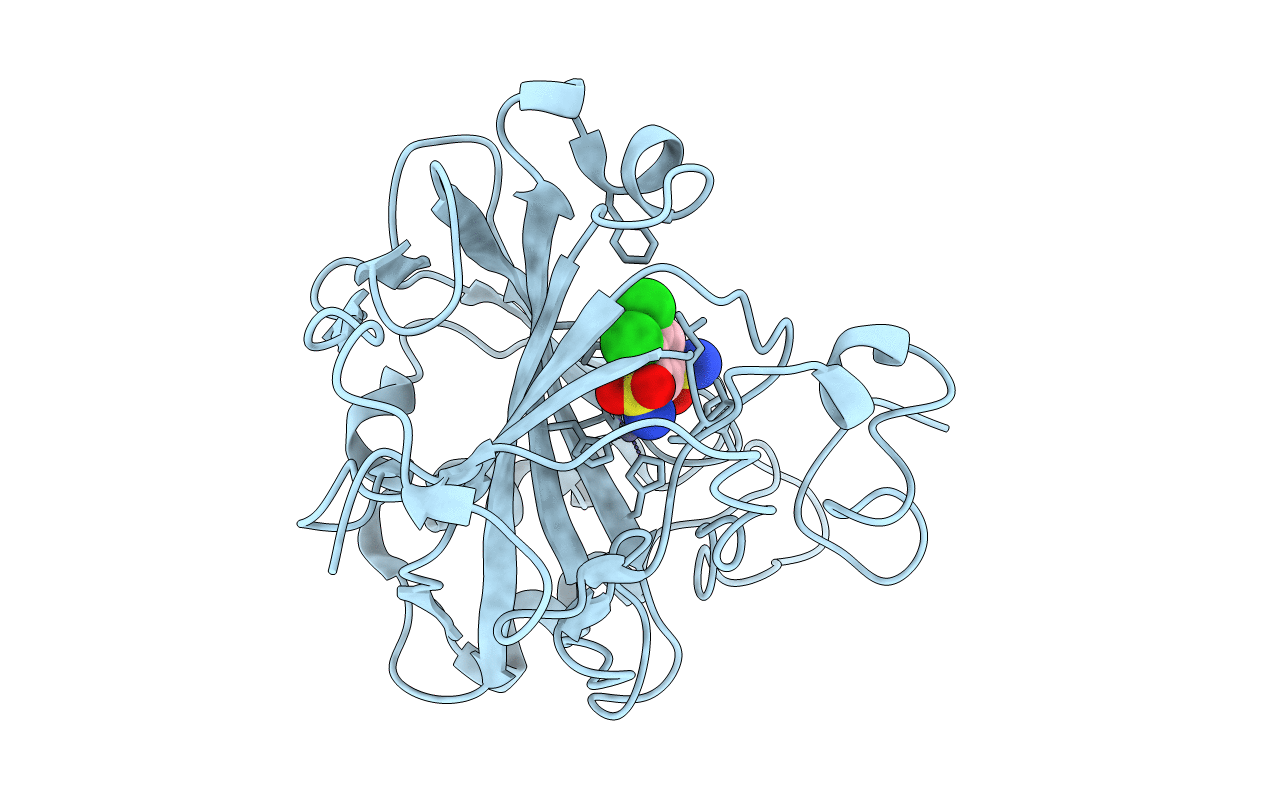

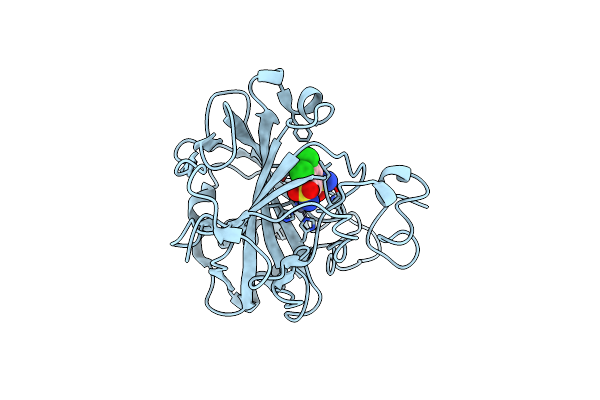

The crystal structure of the human carbonic anhydrase II in complex with 4,5-dichloro-benzene-1,3-disulfonamide
Biological Source:
Source Organism:
Homo sapiens (Taxon ID: 9606)
Method Details:
Experimental Method:
Resolution:
1.60 Å
R-Value Free:
0.22
R-Value Work:
0.19
Space Group:
P 1 21 1
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Carbonic anhydrase 2
Gene (Uniprot):CA2
Chain IDs:A
Chain Length:260
Number of Molecules:1
Biological Source:Homo sapiens
Primary Citation
Carbonic anhydrase inhibitors: Inhibition of human, bacterial, and archaeal isozymes with benzene-1,3-disulfonamides-Solution and crystallographic studies.
Bioorg.Med.Chem.Lett. 17 4201 4207 (2007)
PMID: 17540563 DOI: 10.1016/j.bmcl.2007.05.045

Abstact

Three benzene-1,3-disulfonamide derivatives were investigated for their interaction with 12 mammalian alpha-carbonic anhydrases (CAs, EC 4.2.1.1), and three bacterial/archaeal CAs belonging to the alpha-, beta-, and gamma-CA class, respectively. X-ray crystal structure of the three inhibitors in complex with the dominant human isozyme CA II revealed a particular binding mode within the cavity. The sulfonamide group in meta-position to the Zn(2+)-coordinated SO(2)NH(2) moiety was oriented toward the hydrophilic side of the active site cleft, establishing hydrogen bonds with His64, Asn67, Gln92, and Thr200. The plane of the phenyl moiety of the inhibitors was rotated by 45 degrees and tilted by 10 degrees with respect to its most recurrent orientation in other CA II-sulfonamide complexes.
