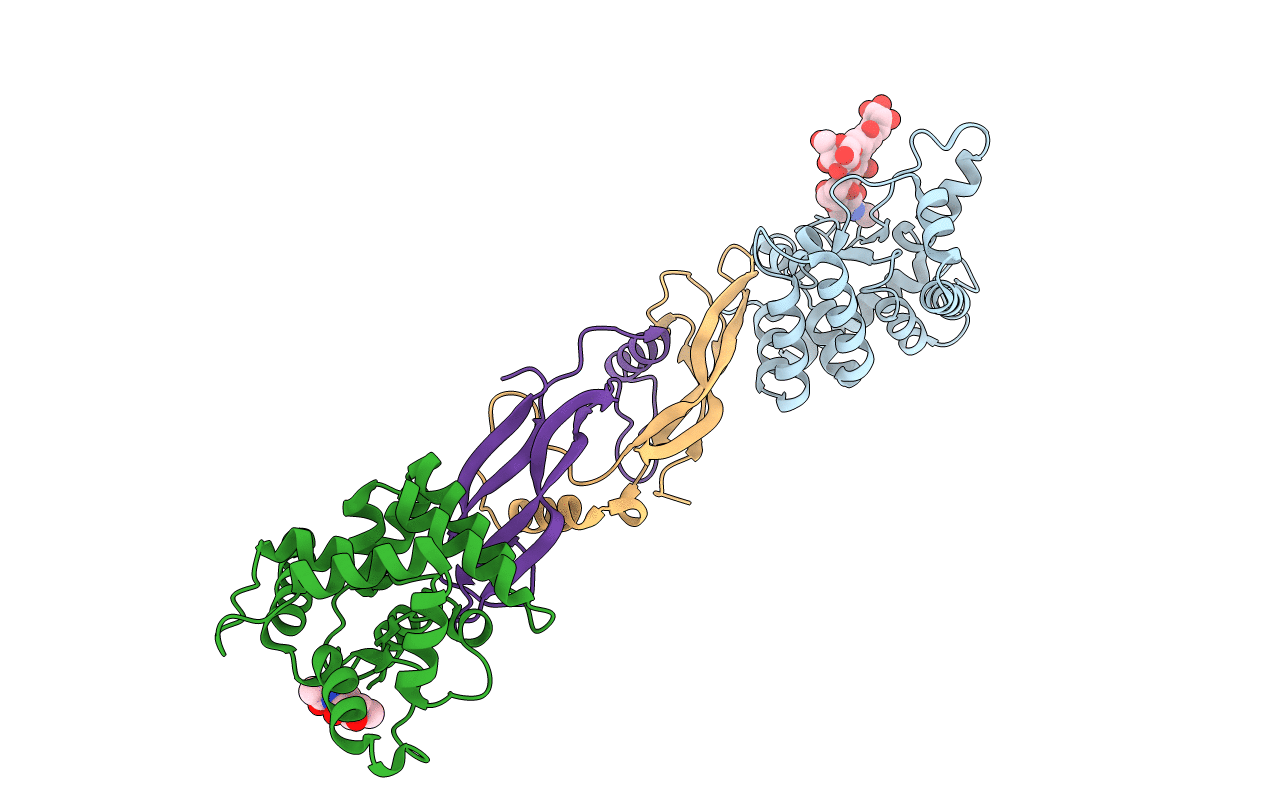

2GH0 image
Deposition Date 2006-03-24
Release Date 2006-06-27
Last Version Date 2024-10-09
Entry Detail
PDB ID:
2GH0
Title:
Growth factor/receptor complex
Biological Source:
Source Organism:
Homo sapiens (Taxon ID: 9606)
Host Organism:
Method Details:
Experimental Method:
Resolution:
1.92 Å
R-Value Free:
0.26
R-Value Work:
0.21
R-Value Observed:
0.22
Space Group:
P 1 21 1
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:GDNF family receptor alpha-3
Gene (Uniprot):GFRA3
Chain IDs:C (auth: A), D (auth: B)
Chain Length:213
Number of Molecules:2
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:artemin
Gene (Uniprot):ARTN
Chain IDs:A (auth: C), B (auth: D)
Chain Length:101
Number of Molecules:2
Biological Source:Homo sapiens
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
ASN C ASN GLYCOSYLATION SITE
Ligand Molecules
Primary Citation
Structure of Artemin Complexed with Its Receptor GFRalpha3: Convergent Recognition of Glial Cell Line-Derived Neurotrophic Factors.
Structure 14 1083 1092 (2006)
PMID: 16765900 DOI: 10.1016/j.str.2006.05.010

Abstact

Artemin (ARTN) is a member of the glial cell line-derived neurotrophic factor (GDNF) family ligands (GFLs) which regulate the development and maintenance of many neuronal populations in the mammalian nervous system. Here we report the 1.92 A crystal structure of the complex formed between ARTN and its receptor GFRalpha3, which is the initiating step in the formation of a ternary signaling complex containing the shared RET receptor. It represents a new receptor-ligand interaction mode for the TGF-beta superfamily that reveals both conserved and specificity-determining anchor points for all GFL-GFRalpha pairs. In tandem with the complex structure, cellular studies using receptor chimeras implicate dyad-symmetric composite interfaces for recruitment and dimerization of RET, leading to intracellular signaling. These studies should facilitate the functional dissection of the specific versus pleiotropic roles of this system in neurobiology, as well as its exploitation for therapeutic applications.
